Step1: Product

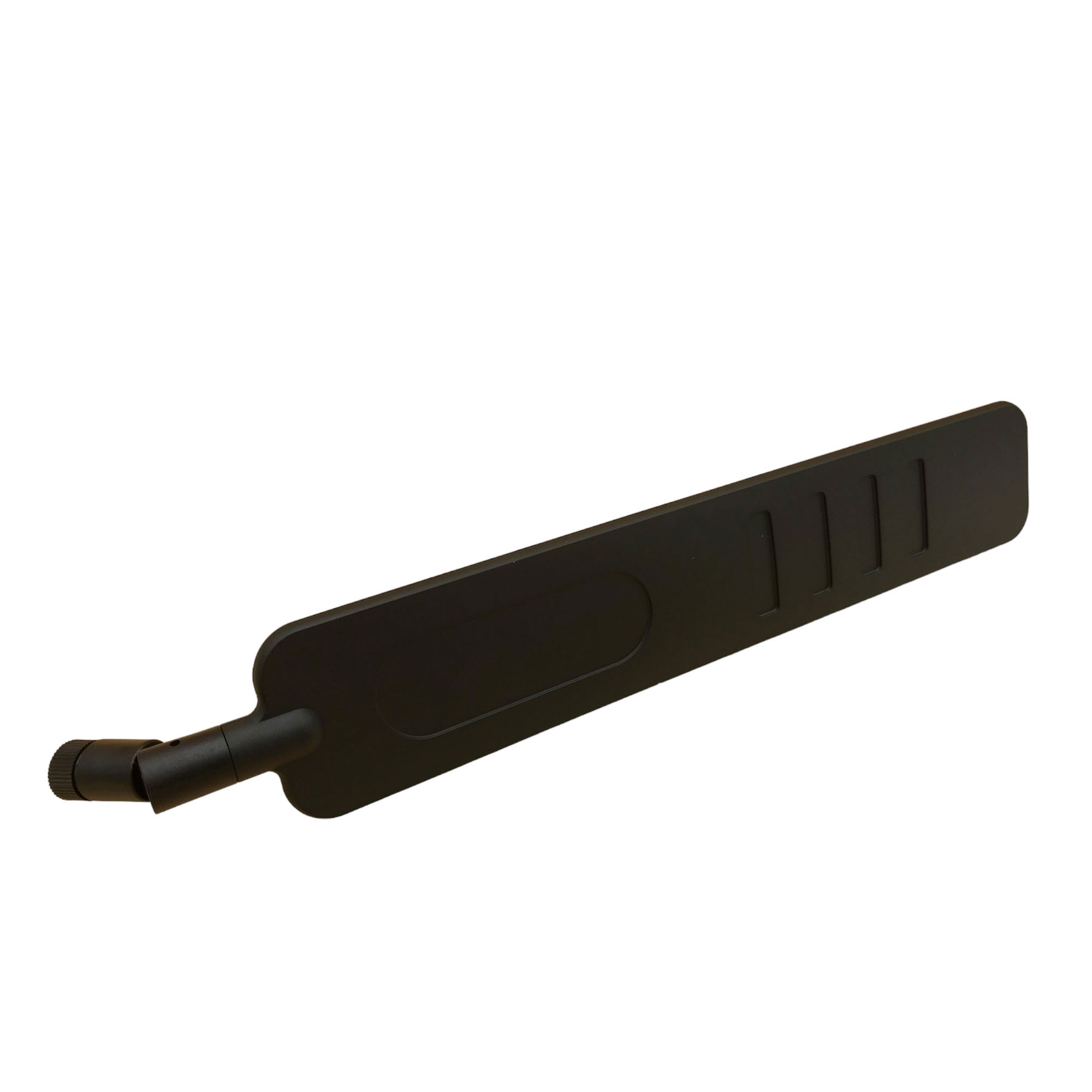

The Antenna Company AC94502-01
Image shown is a representation only
Manufacturer
Manufacturer No
AC94502-01
Packaging
Bulk
Description
ANT 5G 4G LTE 450MHZ TLT BLADE
Detailed Description
RF ANTENNA 4G, 5G, Cat-M1, CDMA, Cellular, GSM, LTE, LTE-M, NB-IoT, UMTS Blade, Tilt/Swivel SMA Male Connector Mount
DataSheet
Gain
2dBi, 2.9dBi, 2.9dBi, 4.5dBi, 6.1dBi, 6.1dBi
VSWR
1.7, 2.1, 2, 1.7, 1.9, 2.2
Packaging
Bulk
Part Status
Active
Power - Max
10 W
Return Loss
-11.7dB, -9dB, -9.5dB, -11.7dB, -10.2dB, -8.5dB
Termination
SMA Male
Antenna Type
Blade, Tilt/Swivel
Applications
4G, 5G, Cat-M1, CDMA, Cellular, GSM, LTE, LTE-M, NB-IoT, UMTS
Height (Max)
11.732" (298.00mm)
Manufacturer
The Antenna Company
Mounting Type
Connector Mount
Frequency Group
Wide Band
Frequency Range
450MHz ~ 470MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz
Number of Bands
6
RF Family/Standard
Cellular
Base Product Number
AC94502
Frequency (Center/Band)
450MHz, 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 3.5GHz
| Attribute | Value |
|---|---|
| Gain | 2dBi, 2.9dBi, 2.9dBi, 4.5dBi, 6.1dBi, 6.1dBi |
| VSWR | 1.7, 2.1, 2, 1.7, 1.9, 2.2 |
| Packaging | Bulk |
| Part Status | Active |
| Power - Max | 10 W |
| Return Loss | -11.7dB, -9dB, -9.5dB, -11.7dB, -10.2dB, -8.5dB |
| Termination | SMA Male |
| Antenna Type | Blade, Tilt/Swivel |
| Applications | 4G, 5G, Cat-M1, CDMA, Cellular, GSM, LTE, LTE-M, NB-IoT, UMTS |
| Height (Max) | 11.732" (298.00mm) |
| Manufacturer | The Antenna Company |
| Mounting Type | Connector Mount |
| Frequency Group | Wide Band |
| Frequency Range | 450MHz ~ 470MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz |
| Number of Bands | 6 |
| RF Family/Standard | Cellular |
| Base Product Number | AC94502 |
| Frequency (Center/Band) | 450MHz, 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 3.5GHz |
