Step1: Product

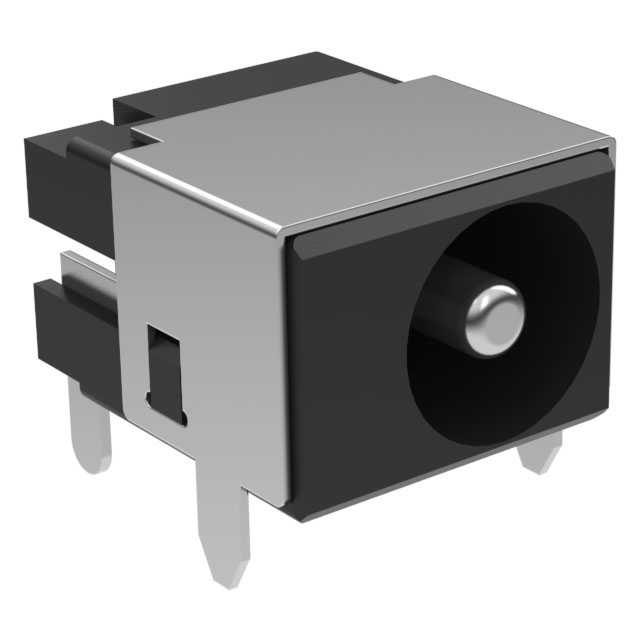

Tensility International Corp 54-00127
Image shown is a representation only
Manufacturer
Manufacturer No
54-00127
Packaging
Bulk
Description
CONN JACK R/A PCB 5.5X2.1MM
Detailed Description
Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Through Hole, Right Angle
DataSheet
Gender
Male
Features
Board Guide
Packaging
Bulk
Shielding
Shielded
Body Color
Black
Part Status
Active
Termination
Solder
Manufacturer
Tensility International Corp
Body Material
Copper Alloy
Mounting Type
Through Hole, Right Angle
Connector Type
Jack
Actual Diameter
0.083" (2.10mm ID), 0.217" (5.50mm OD)
Voltage - Rated
48V
Contact Material
Brass, Phosphor Bronze
Housing Material
Polybutylene Terephthalate (PBT)
Insulation Color
Black
Internal Switch(s)
Single Switch, Normally Closed
Mating Length/Depth
0.323" (8.20mm)
Current Rating (Amps)
6 A
Operating Temperature
-25°C ~ 85°C
Contact Material - Plating
Silver
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
2.10mm ID (0.083"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Male |
| Features | Board Guide |
| Packaging | Bulk |
| Shielding | Shielded |
| Body Color | Black |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Tensility International Corp |
| Body Material | Copper Alloy |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Jack |
| Actual Diameter | 0.083" (2.10mm ID), 0.217" (5.50mm OD) |
| Voltage - Rated | 48V |
| Contact Material | Brass, Phosphor Bronze |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Insulation Color | Black |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mating Length/Depth | 0.323" (8.20mm) |
| Current Rating (Amps) | 6 A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Material - Plating | Silver |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 2.10mm ID (0.083"), 5.50mm OD (0.217") |
