Step1: Product

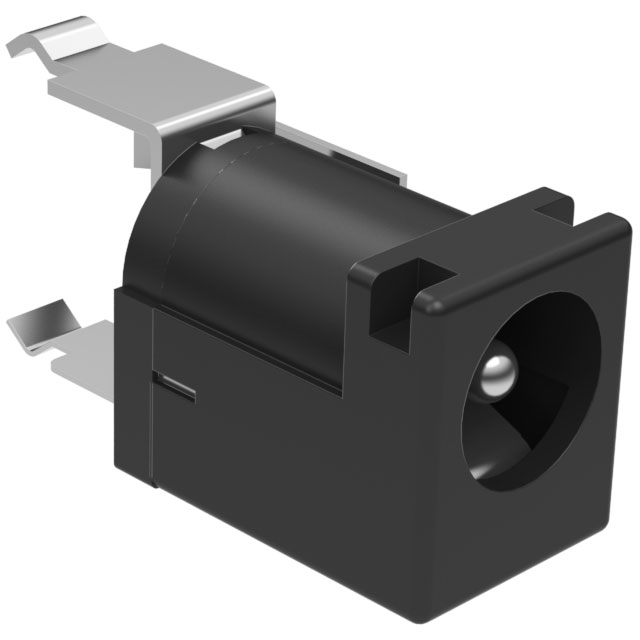

Tensility International Corp 54-00146
Image shown is a representation only
Manufacturer
Manufacturer No
54-00146
Packaging
Bulk
Description
CONN JACK PCB W/BL 5.5X2.1MM
Detailed Description
Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Through Hole
DataSheet
Gender
Male
Packaging
Bulk
Shielding
Unshielded
Body Color
Black
Part Status
Active
Termination
Kinked Pin
Manufacturer
Tensility International Corp
Body Material
Copper Alloy
Mounting Type
Through Hole
Connector Type
Jack
Actual Diameter
0.083" (2.10mm ID), 0.217" (5.50mm OD)
Voltage - Rated
48V
Contact Material
Brass, Stainless Steel
Housing Material
Polybutylene Terephthalate (PBT)
Insulation Color
Black
Internal Switch(s)
Single Switch, Normally Closed
Current Rating (Amps)
4.5 A
Operating Temperature
-25°C ~ 85°C
Contact Material - Plating
Silver
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
2.10mm ID (0.083"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Male |
| Packaging | Bulk |
| Shielding | Unshielded |
| Body Color | Black |
| Part Status | Active |
| Termination | Kinked Pin |
| Manufacturer | Tensility International Corp |
| Body Material | Copper Alloy |
| Mounting Type | Through Hole |
| Connector Type | Jack |
| Actual Diameter | 0.083" (2.10mm ID), 0.217" (5.50mm OD) |
| Voltage - Rated | 48V |
| Contact Material | Brass, Stainless Steel |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Insulation Color | Black |
| Internal Switch(s) | Single Switch, Normally Closed |
| Current Rating (Amps) | 4.5 A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Material - Plating | Silver |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 2.10mm ID (0.083"), 5.50mm OD (0.217") |
