Step1: Product
Tensility International Corp 54-00151

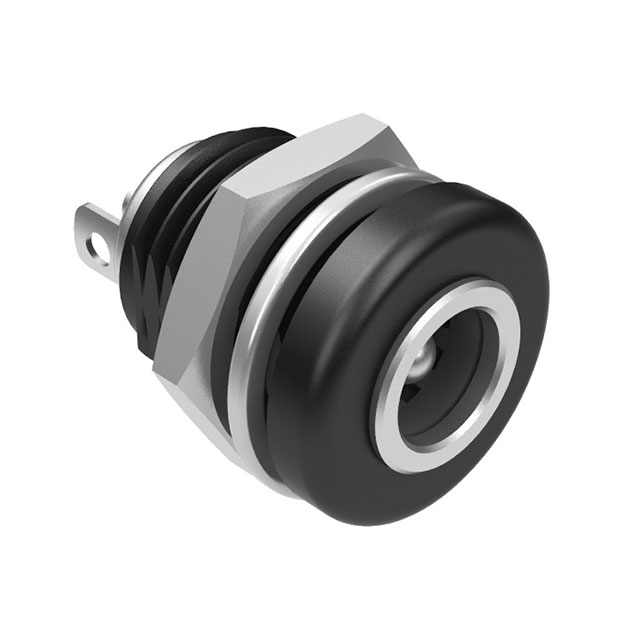

Image shown is a representation only
Manufacturer
Manufacturer No
54-00151
Packaging
Tray
Description
CONN JACK PNL MNT 5.5X2.1MM ISO
Detailed Description
Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Panel Mount
DataSheet
Gender
Male
Features
Mounting Hardware
Includes
3 pcs - 1 Connector, 1 Nut, 1 Washer
Packaging
Tray
Shielding
Unshielded
Body Color
Silver, Black
Part Status
Active
Termination
Solder Cup
Thread Size
M11x1
Manufacturer
Tensility International Corp
Mounting Type
Panel Mount
Connector Type
Jack
Actual Diameter
0.083" (2.10mm ID), 0.217" (5.50mm OD)
Voltage - Rated
48V
Housing Material
Polyamide (PA), Nylon
Insulation Color
Black
Mounting Feature
Bulkhead - Rear Side Nut
Internal Switch(s)
Does Not Contain Switch
Current Rating (Amps)
7.5 A
Operating Temperature
-25°C ~ 105°C
Contact Material - Plating
Nickel
Material Flammability Rating
UL94 V-0
Number of Positions/Contacts
2 Conductors, 2 Contacts
Industry Recognized Mating Diameter
2.10mm ID (0.083"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Male |
| Features | Mounting Hardware |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Packaging | Tray |
| Shielding | Unshielded |
| Body Color | Silver, Black |
| Part Status | Active |
| Termination | Solder Cup |
| Thread Size | M11x1 |
| Manufacturer | Tensility International Corp |
| Mounting Type | Panel Mount |
| Connector Type | Jack |
| Actual Diameter | 0.083" (2.10mm ID), 0.217" (5.50mm OD) |
| Voltage - Rated | 48V |
| Housing Material | Polyamide (PA), Nylon |
| Insulation Color | Black |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Internal Switch(s) | Does Not Contain Switch |
| Current Rating (Amps) | 7.5 A |
| Operating Temperature | -25°C ~ 105°C |
| Contact Material - Plating | Nickel |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Industry Recognized Mating Diameter | 2.10mm ID (0.083"), 5.50mm OD (0.217") |
