Step1: Product

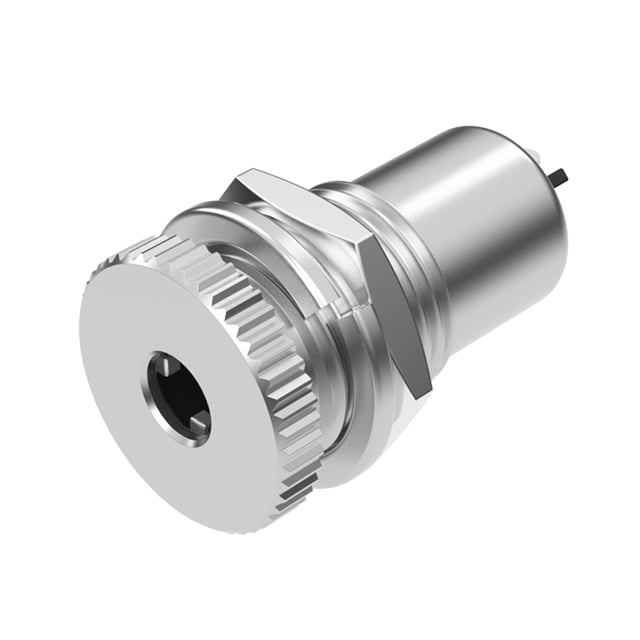

Tensility International Corp 54-00080
Image shown is a representation only
Manufacturer
Manufacturer No
54-00080
Packaging
Bulk
Description
CONN JACK PNL MNT 3.5MM MONO
Detailed Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Mono Connector Solder Eyelet(s)
DataSheet
Mfr
Tensility International Corp
Gender
Female
Features
Mounting Hardware
Includes
3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Packaging
Bulk
Shielding
Unshielded
Body Color
Silver
Part Status
Active
Termination
Solder Eyelet(s)
Thread Size
M9x0.75
Signal Lines
Mono
Mounting Type
Panel Mount
Connector Type
Phone Jack
Actual Diameter
0.142" (3.60mm)
Panel Hole Size
0.362" ~ 0.413" (9.20mm ~ 10.50mm)
Voltage - Rated
30VDC
Contact Material
Phosphor Brass
Housing Material
Brass
Insulation Color
Black
Internal Switch(s)
Does Not Contain Switch
Current Rating (Amps)
300 mA
Operating Temperature
-25°C ~ 85°C
Contact Material - Plating
Nickel
Number of Positions/Contacts
2 Conductors, 2 Contacts
Industry Recognized Mating Diameter
3.50mm (0.141", 1/8", Mini Plug) - Headphone
| Attribute | Value |
|---|---|
| Mfr | Tensility International Corp |
| Gender | Female |
| Features | Mounting Hardware |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
| Packaging | Bulk |
| Shielding | Unshielded |
| Body Color | Silver |
| Part Status | Active |
| Termination | Solder Eyelet(s) |
| Thread Size | M9x0.75 |
| Signal Lines | Mono |
| Mounting Type | Panel Mount |
| Connector Type | Phone Jack |
| Actual Diameter | 0.142" (3.60mm) |
| Panel Hole Size | 0.362" ~ 0.413" (9.20mm ~ 10.50mm) |
| Voltage - Rated | 30VDC |
| Contact Material | Phosphor Brass |
| Housing Material | Brass |
| Insulation Color | Black |
| Internal Switch(s) | Does Not Contain Switch |
| Current Rating (Amps) | 300 mA |
| Operating Temperature | -25°C ~ 85°C |
| Contact Material - Plating | Nickel |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
