Step1: Product

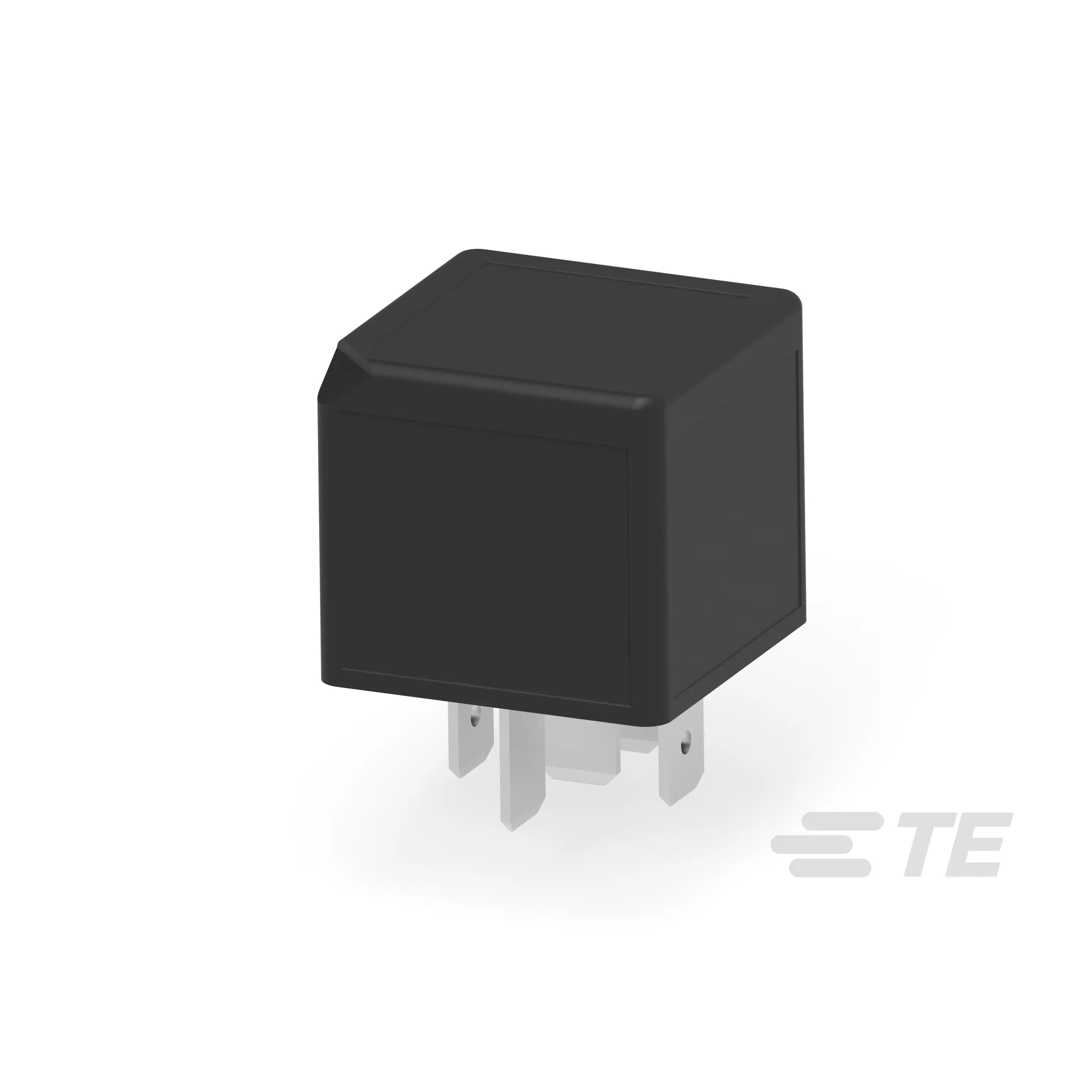

TE Connectivity Potter & Brumfield Relays 2447984-1
Image shown is a representation only
Manufacturer
Manufacturer No
2447984-1
Packaging
Bulk
Description
V23234A0004X055-EV-100
Detailed Description
Automotive Relay SPDT (1 Form C) 24VDC Coil Socketable
DataSheet
Series
F4A
Features
Diode
Coil Type
Non Latching
Packaging
Bulk
Coil Power
2.3W
Part Status
Active
Coil Current
94.1 mA
Coil Voltage
24VDC
Contact Form
SPDT (1 Form C)
Manufacturer
TE Connectivity Potter & Brumfield Relays
Operate Time
7 ms
Release Time
2 ms
Mounting Type
Socketable
Coil Resistance
255 Ohms
Contact Material
Silver Alloy
Switching Voltage
32VDC - Max
Termination Style
Plug In, Quick Connect - 0.250" (6.3mm)
Must Operate Voltage
16 VDC
Must Release Voltage
2.5 VDC
Operating Temperature
-40°C ~ 105°C
Contact Rating (Current)
50 A
| Attribute | Value |
|---|---|
| Series | F4A |
| Features | Diode |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Coil Power | 2.3W |
| Part Status | Active |
| Coil Current | 94.1 mA |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Operate Time | 7 ms |
| Release Time | 2 ms |
| Mounting Type | Socketable |
| Coil Resistance | 255 Ohms |
| Contact Material | Silver Alloy |
| Switching Voltage | 32VDC - Max |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) |
| Must Operate Voltage | 16 VDC |
| Must Release Voltage | 2.5 VDC |
| Operating Temperature | -40°C ~ 105°C |
| Contact Rating (Current) | 50 A |
