Step1: Product
TE Connectivity Potter & Brumfield Relays 1-1414760-0

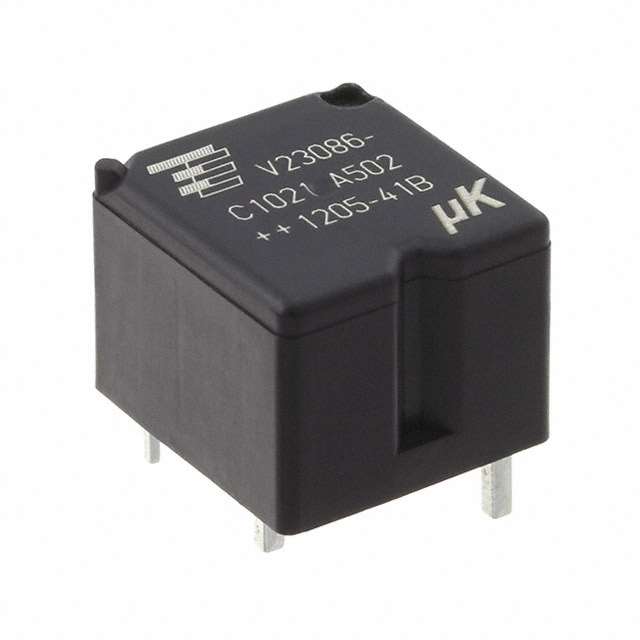

Image shown is a representation only
Manufacturer
Manufacturer No
1-1414760-0
Quantity
47
Availability
In Stock
Packaging
Box
Description
RELAY AUTOMOTIVE SPST 30A 10V
Detailed Description
Automotive Relay SPST-NO (1 Form A) 10VDC Coil Through Hole
DataSheet
Series
Micro Relay K
Coil Type
Non Latching
Packaging
Box
Coil Power
552mW
Part Status
Active
Coil Current
55.2 mA
Coil Voltage
10VDC
Contact Form
SPST-NO (1 Form A)
Manufacturer
TE Connectivity Potter & Brumfield Relays
Operate Time
3 ms
Release Time
1.5 ms
Mounting Type
Through Hole
Coil Resistance
181 Ohms
Contact Material
Silver Tin Oxide (AgSnO)
Switching Voltage
14VDC - Nom
Termination Style
PC Pin
Base Product Number
1-1414760
Must Operate Voltage
6.9 VDC
Must Release Voltage
1.5 VDC
Operating Temperature
-40°C ~ 105°C
Contact Rating (Current)
30 A
| Attribute | Value |
|---|---|
| Series | Micro Relay K |
| Coil Type | Non Latching |
| Packaging | Box |
| Coil Power | 552mW |
| Part Status | Active |
| Coil Current | 55.2 mA |
| Coil Voltage | 10VDC |
| Contact Form | SPST-NO (1 Form A) |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Operate Time | 3 ms |
| Release Time | 1.5 ms |
| Mounting Type | Through Hole |
| Coil Resistance | 181 Ohms |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Switching Voltage | 14VDC - Nom |
| Termination Style | PC Pin |
| Base Product Number | 1-1414760 |
| Must Operate Voltage | 6.9 VDC |
| Must Release Voltage | 1.5 VDC |
| Operating Temperature | -40°C ~ 105°C |
| Contact Rating (Current) | 30 A |
