Step1: Product

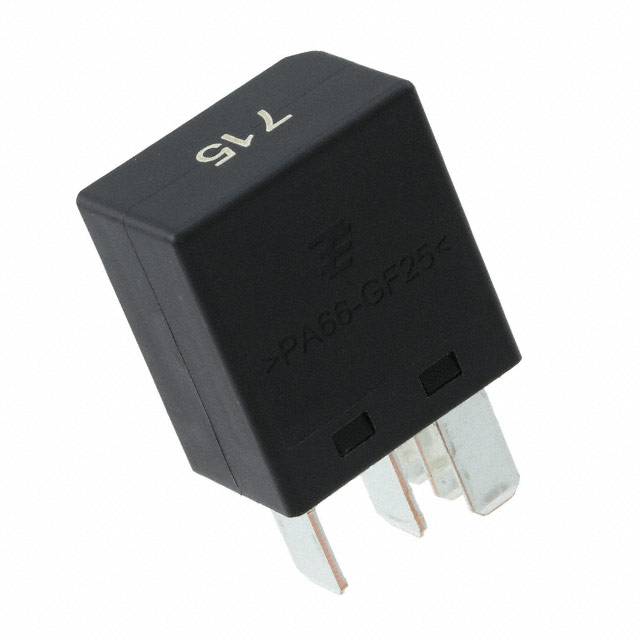

TE Connectivity Potter & Brumfield Relays V23074A1002A403
Image shown is a representation only
Manufacturer
Manufacturer No
V23074A1002A403
Quantity
5
Availability
In Stock
Packaging
Bulk
Description
RELAY AUTOMOTIVE SPDT 30A 24V
Detailed Description
Automotive Relay SPDT (1 Form C) 24VDC Coil Socketable
DataSheet
Series
Micro Relay A
Features
Resistor
Coil Type
Non Latching
Packaging
Bulk
Coil Power
1.34W
Part Status
Active
Coil Voltage
24VDC
Contact Form
SPDT (1 Form C)
Manufacturer
TE Connectivity Potter & Brumfield Relays
Mounting Type
Socketable
Coil Resistance
430 Ohms
Contact Material
Silver Alloy
Switching Voltage
24VDC - Nom
Termination Style
Plug In, Quick Connect - Multiple Sizes
Base Product Number
V23074
Must Operate Voltage
14.4 VDC
Must Release Voltage
3.6 VDC
Operating Temperature
-40°C ~ 125°C
Contact Rating (Current)
30 A
| Attribute | Value |
|---|---|
| Series | Micro Relay A |
| Features | Resistor |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Coil Power | 1.34W |
| Part Status | Active |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Mounting Type | Socketable |
| Coil Resistance | 430 Ohms |
| Contact Material | Silver Alloy |
| Switching Voltage | 24VDC - Nom |
| Termination Style | Plug In, Quick Connect - Multiple Sizes |
| Base Product Number | V23074 |
| Must Operate Voltage | 14.4 VDC |
| Must Release Voltage | 3.6 VDC |
| Operating Temperature | -40°C ~ 125°C |
| Contact Rating (Current) | 30 A |
