Step1: Product

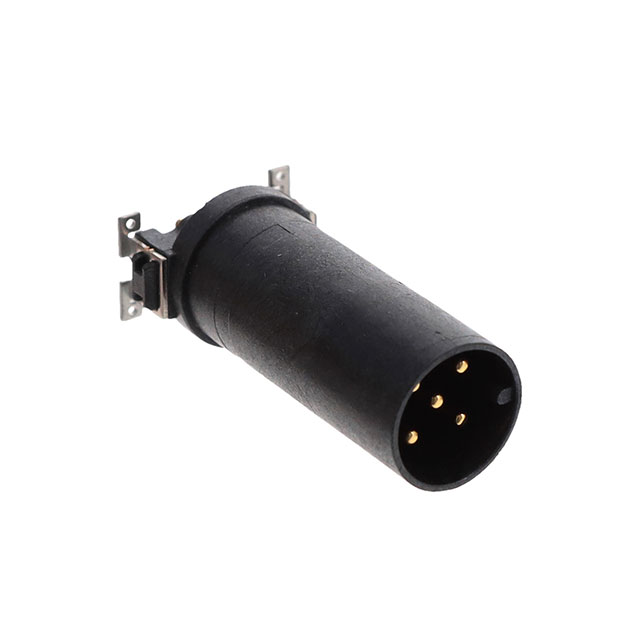

TE Connectivity Erni 244790-E
Image shown is a representation only
Manufacturer
Manufacturer No
244790-E
Packaging
Box
Description
M12 M 5 A H S * 201 17,0 094 * *
Detailed Description
5 Position Circular Connector Insert, Male Pins Solder Eyelet(s)
DataSheet
Mfr
TE Connectivity Erni
Color
Black
Series
M8/M12
Features
Board Guide, Insert Only, Requires Shell
Packaging
Box
Shielding
Unshielded
Orientation
A
Part Status
Last Time Buy
Termination
Solder Eyelet(s)
Mounting Type
Surface Mount
Connector Type
Insert, Male Pins
Voltage Rating
60VDC
Insert Material
Liquid Crystal Polymer (LCP)
Contact Material
Copper Alloy
Ingress Protection
IP67 - Dust Tight, Waterproof
Number of Positions
5
Shell Size - Insert
M12-5
Current Rating (Amps)
4A
Operating Temperature
-25°C ~ 85°C
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Erni |
| Color | Black |
| Series | M8/M12 |
| Features | Board Guide, Insert Only, Requires Shell |
| Packaging | Box |
| Shielding | Unshielded |
| Orientation | A |
| Part Status | Last Time Buy |
| Termination | Solder Eyelet(s) |
| Mounting Type | Surface Mount |
| Connector Type | Insert, Male Pins |
| Voltage Rating | 60VDC |
| Insert Material | Liquid Crystal Polymer (LCP) |
| Contact Material | Copper Alloy |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Number of Positions | 5 |
| Shell Size - Insert | M12-5 |
| Current Rating (Amps) | 4A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Finish - Mating | Gold |
| Material Flammability Rating | UL94 V-0 |
