Step1: Product

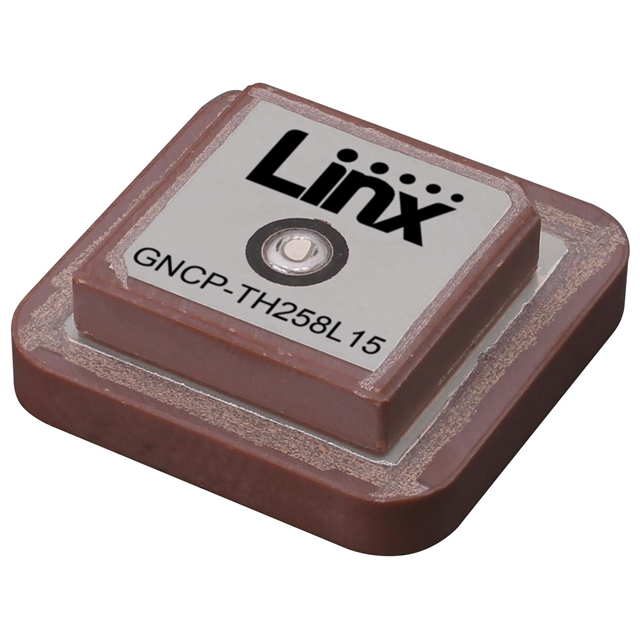

TE Connectivity Linx ANT-GNCP-TH258L15
Image shown is a representation only
Manufacturer
Manufacturer No
ANT-GNCP-TH258L15
Packaging
Tray
Description
RF ANT GNSS PATCH L1 L5 25MM PIN
Detailed Description
RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS Ceramic Patch Pin Adhesive
Datasheet
Gain
1dBi, 5.6dBi
VSWR
5.9, 6.4
Packaging
Tray
Termination
Pin
Antenna Type
Ceramic Patch
Applications
Beidou, Galileo, GLONASS, GNSS, GPS
Height (Max)
0.315" (8.00mm)
Manufacturer
TE Connectivity Linx
Mounting Type
Adhesive
Frequency Group
UHF (1GHz ~ 2GHz)
Frequency Range
1.17GHz ~ 1.183GHz, 1.5531GHz ~ 1.6086GHz
Number of Bands
2
RF Family/Standard
Navigation
Base Product Number
ANT-GNCP
Frequency (Center/Band)
1.176GHz, 1.5808GHz
| Attribute | Value |
|---|---|
| Gain | 1dBi, 5.6dBi |
| VSWR | 5.9, 6.4 |
| Packaging | Tray |
| Termination | Pin |
| Antenna Type | Ceramic Patch |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS |
| Height (Max) | 0.315" (8.00mm) |
| Manufacturer | TE Connectivity Linx |
| Mounting Type | Adhesive |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.17GHz ~ 1.183GHz, 1.5531GHz ~ 1.6086GHz |
| Number of Bands | 2 |
| RF Family/Standard | Navigation |
| Base Product Number | ANT-GNCP |
| Frequency (Center/Band) | 1.176GHz, 1.5808GHz |
