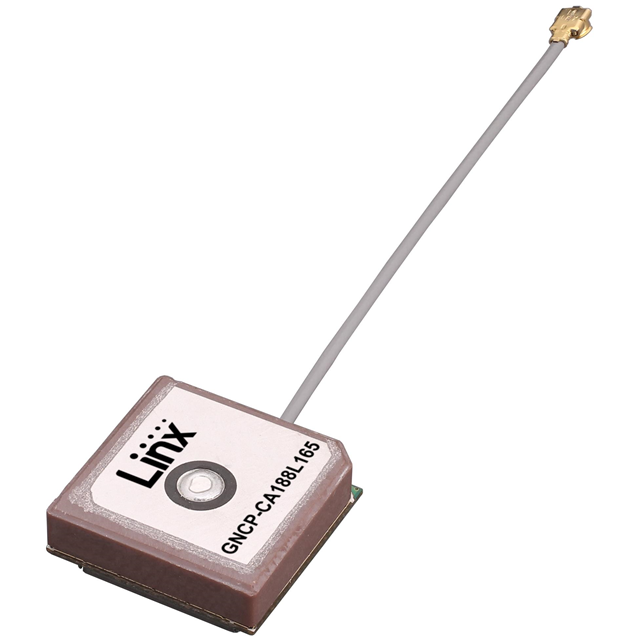

TE Connectivity Linx ANT-GNCP-CA188L165
Image shown is a representation only
Manufacturer
Manufacturer No
ANT-GNCP-CA188L165
Packaging
Tray
Description
RF ANT GNSS GPS 15MM PATCH LNA
Detailed Description
RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS Ceramic Patch U.FL (UMCC), I-PEX MHF1 Surface Mount
DataSheet
Gain
10.6dBi, 13.7dBi, 14.1dBi, 14.1dBi
VSWR
1.1
Features
Cable - 65mm, LNA
Packaging
Tray
Part Status
Active
Termination
U.FL (UMCC), I-PEX MHF1
Antenna Type
Ceramic Patch
Applications
Beidou, Galileo, GLONASS, GNSS, GPS
Height (Max)
0.280" (7.10mm)
Manufacturer
TE Connectivity Linx
Mounting Type
Surface Mount
Frequency Group
UHF (1GHz ~ 2GHz)
Frequency Range
1.559GHz ~ 1.563GHz, 1.567GHz ~ 1.5836GHz, 1.5876GHz ~ 1.5917GHz, 1.593GHz ~ 1.6086GHz
Number of Bands
4
RF Family/Standard
Navigation
Base Product Number
ANT-GNCP
Frequency (Center/Band)
1.561GHz, 1.575GHz, 1.5897GHz, 1.602GHz
| Attribute | Value |
|---|---|
| Gain | 10.6dBi, 13.7dBi, 14.1dBi, 14.1dBi |
| VSWR | 1.1 |
| Features | Cable - 65mm, LNA |
| Packaging | Tray |
| Part Status | Active |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Antenna Type | Ceramic Patch |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS |
| Height (Max) | 0.280" (7.10mm) |
| Manufacturer | TE Connectivity Linx |
| Mounting Type | Surface Mount |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.559GHz ~ 1.563GHz, 1.567GHz ~ 1.5836GHz, 1.5876GHz ~ 1.5917GHz, 1.593GHz ~ 1.6086GHz |
| Number of Bands | 4 |
| RF Family/Standard | Navigation |
| Base Product Number | ANT-GNCP |
| Frequency (Center/Band) | 1.561GHz, 1.575GHz, 1.5897GHz, 1.602GHz |
