Step1: Product

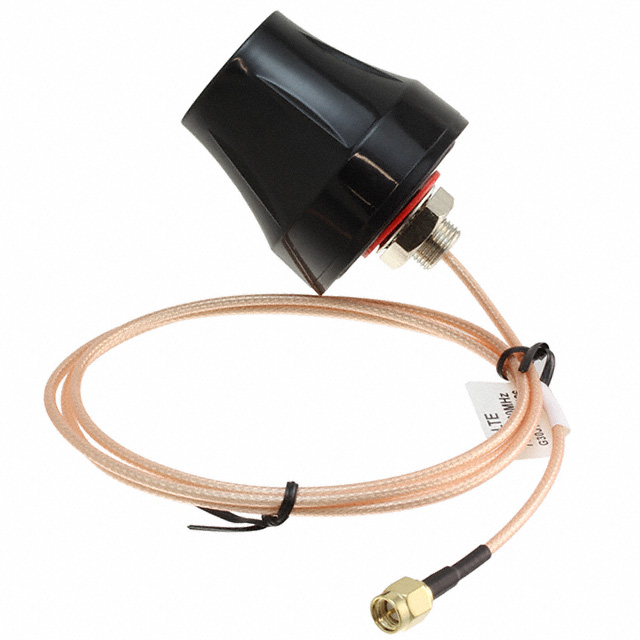

Red Lion Controls ANT-G30B108111
Image shown is a representation only
Manufacturer
Manufacturer No
ANT-G30B108111
Packaging
Bulk
Description
RF ANT 700/850MHZ WHIP STR PANEL
Detailed Description
RF ANTENNA CDMA, DCS, EDGE, GPRS, GSM, HSDPA, IMT, LTE, UMTS, WCDMA Whip, Straight SMA Male Panel Mount
DataSheet
Gain
1.2dBi, 3.2dBi, 2.5dBi, 1.5dBi
VSWR
3
Series
Olympian
Features
Cable - 1m
Packaging
Bulk
Part Status
Active
Power - Max
5 W
Termination
SMA Male
Antenna Type
Whip, Straight
Applications
CDMA, DCS, EDGE, GPRS, GSM, HSDPA, IMT, LTE, UMTS, WCDMA
Height (Max)
1.890" (48.00mm)
Manufacturer
Red Lion Controls
Mounting Type
Panel Mount
Frequency Group
Wide Band
Frequency Range
700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.483GHz, 2.5GHz ~ 2.8GHz
Number of Bands
4
Ingress Protection
IP67, IP69K
RF Family/Standard
Cellular
Base Product Number
ANT-G30
Frequency (Center/Band)
700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz
| Attribute | Value |
|---|---|
| Gain | 1.2dBi, 3.2dBi, 2.5dBi, 1.5dBi |
| VSWR | 3 |
| Series | Olympian |
| Features | Cable - 1m |
| Packaging | Bulk |
| Part Status | Active |
| Power - Max | 5 W |
| Termination | SMA Male |
| Antenna Type | Whip, Straight |
| Applications | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, IMT, LTE, UMTS, WCDMA |
| Height (Max) | 1.890" (48.00mm) |
| Manufacturer | Red Lion Controls |
| Mounting Type | Panel Mount |
| Frequency Group | Wide Band |
| Frequency Range | 700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.483GHz, 2.5GHz ~ 2.8GHz |
| Number of Bands | 4 |
| Ingress Protection | IP67, IP69K |
| RF Family/Standard | Cellular |
| Base Product Number | ANT-G30 |
| Frequency (Center/Band) | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz |
