Step1: Product
Red Lion Controls ANT-MA104CAB015

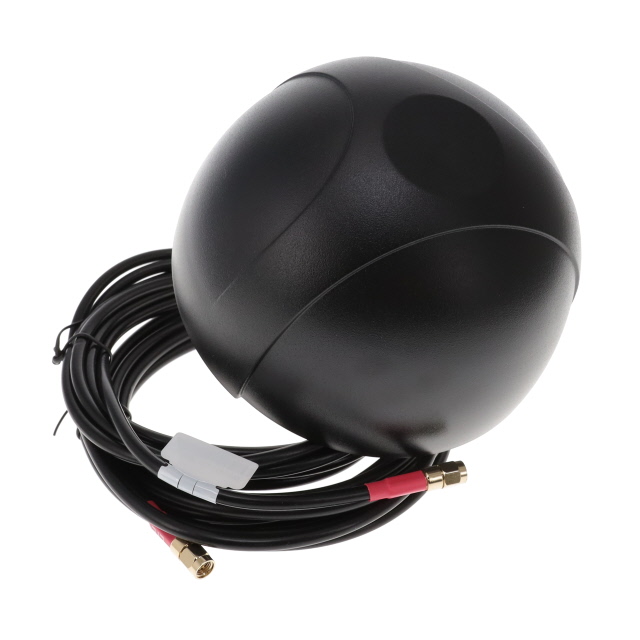

Image shown is a representation only
Manufacturer
Manufacturer No
ANT-MA104CAB015
Packaging
Bulk
Description
RF ANT 850MHZ/900MHZ MODULE CAB
Detailed Description
RF ANTENNA AMPS, CDMA, DCS, EVDO, GPRS, GPS, GSM, HSPA, PCS, UMTS, WCDMA Module SMA Male Panel Mount
DataSheet
Gain
5dBi
VSWR
3.5
Features
Cable - 3m
Packaging
Bulk
Part Status
Active
Power - Max
10 W
Return Loss
-25dB
Termination
SMA Male
Antenna Type
Module
Applications
AMPS, CDMA, DCS, EVDO, GPRS, GPS, GSM, HSPA, PCS, UMTS, WCDMA
Height (Max)
1.142" (29.00mm)
Manufacturer
Red Lion Controls
Mounting Type
Panel Mount
Frequency Group
Wide Band
Frequency Range
824MHz ~ 960MHz, 1.85GHz ~ 2.17GHz
Number of Bands
6
Ingress Protection
IP67, IP69K
RF Family/Standard
Cellular, Navigation
Base Product Number
ANT-MA104
Frequency (Center/Band)
850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz
| Attribute | Value |
|---|---|
| Gain | 5dBi |
| VSWR | 3.5 |
| Features | Cable - 3m |
| Packaging | Bulk |
| Part Status | Active |
| Power - Max | 10 W |
| Return Loss | -25dB |
| Termination | SMA Male |
| Antenna Type | Module |
| Applications | AMPS, CDMA, DCS, EVDO, GPRS, GPS, GSM, HSPA, PCS, UMTS, WCDMA |
| Height (Max) | 1.142" (29.00mm) |
| Manufacturer | Red Lion Controls |
| Mounting Type | Panel Mount |
| Frequency Group | Wide Band |
| Frequency Range | 824MHz ~ 960MHz, 1.85GHz ~ 2.17GHz |
| Number of Bands | 6 |
| Ingress Protection | IP67, IP69K |
| RF Family/Standard | Cellular, Navigation |
| Base Product Number | ANT-MA104 |
| Frequency (Center/Band) | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz |
