Step1: Product

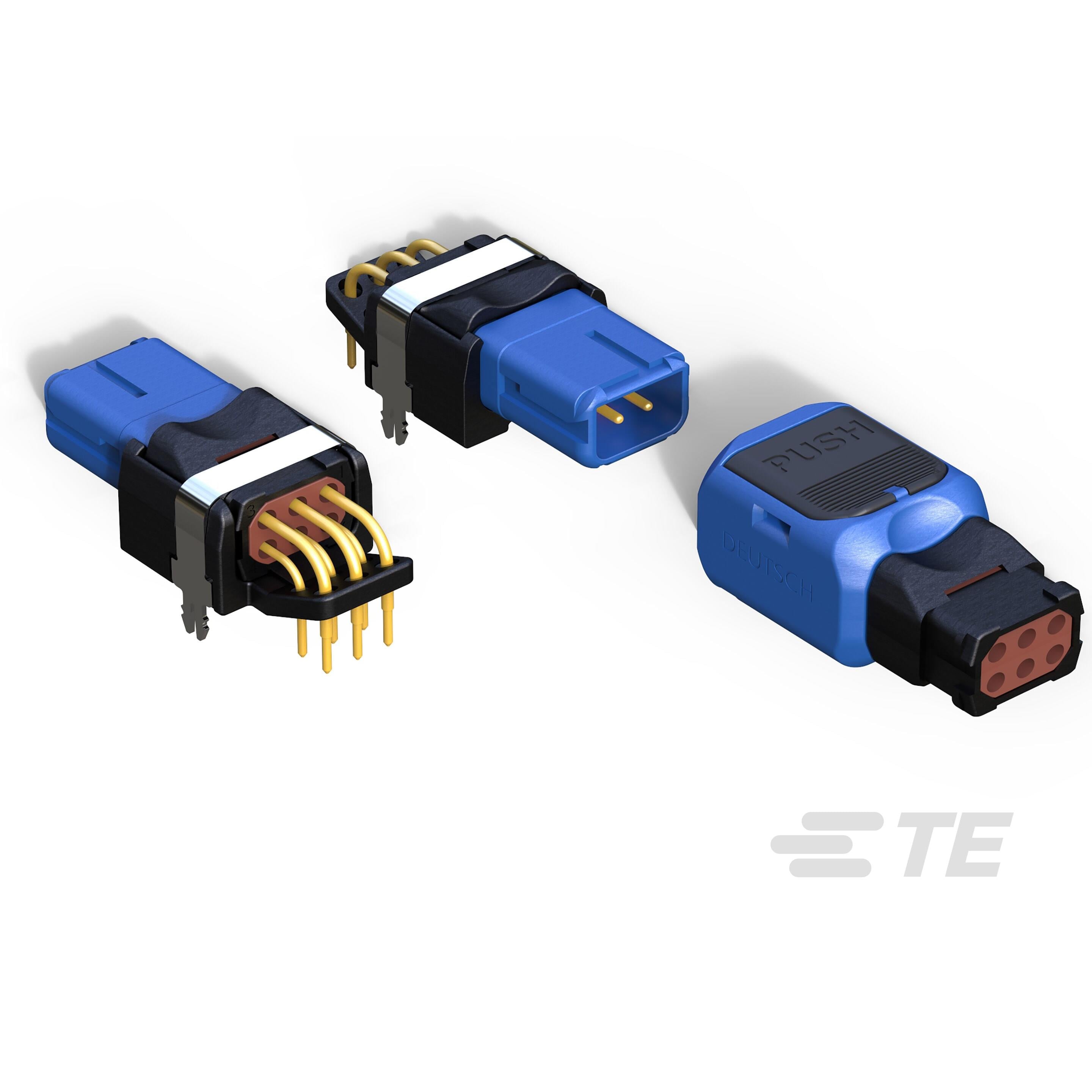

TE Connectivity Deutsch Connectors D369-G99-BP4
Image shown is a representation only
Manufacturer
Manufacturer No
D369-G99-BP4
Packaging
Bulk
Description
CONN HEADER R/A 9POS 2.54MM
Detailed Description
Connector Header Through Hole, Right Angle 9 position 0.100" (2.54mm)
DataSheet
Mfr
TE Connectivity Deutsch Connectors
Style
Board to Cable/Wire
Series
369
Features
Board Guide, Board Lock, Sealed
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Through Hole, Right Angle
Connector Type
Receptacle
Fastening Type
Locking Ramp
Number of Rows
3
Pitch - Mating
0.100" (2.54mm)
Contact Material
Beryllium Copper
Insulation Color
Blue
Insulation Height
0.331" (8.40mm)
Ingress Protection
IP67
Base Product Number
D369
Insulation Material
Polyetherimide, Glass Filled
Number of Positions
9
Row Spacing - Mating
0.100" (2.54mm)
Contact Length - Post
0.059" (1.50mm)
Operating Temperature
-55°C ~ 175°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Deutsch Connectors |
| Style | Board to Cable/Wire |
| Series | 369 |
| Features | Board Guide, Board Lock, Sealed |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Locking Ramp |
| Number of Rows | 3 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Material | Beryllium Copper |
| Insulation Color | Blue |
| Insulation Height | 0.331" (8.40mm) |
| Ingress Protection | IP67 |
| Base Product Number | D369 |
| Insulation Material | Polyetherimide, Glass Filled |
| Number of Positions | 9 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Length - Post | 0.059" (1.50mm) |
| Operating Temperature | -55°C ~ 175°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
