Step1: Product
TE Connectivity Deutsch Connectors D369-G99-NS4

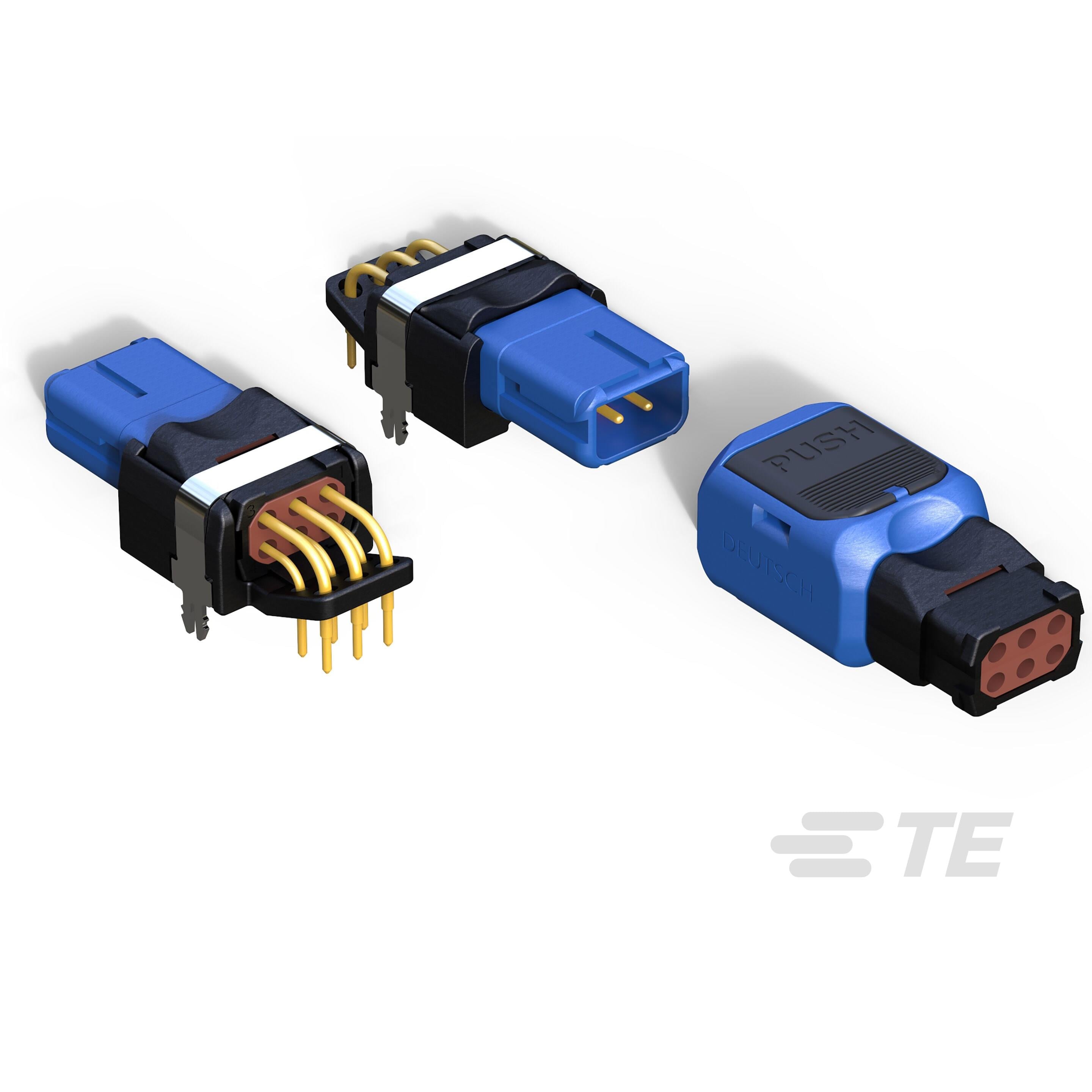

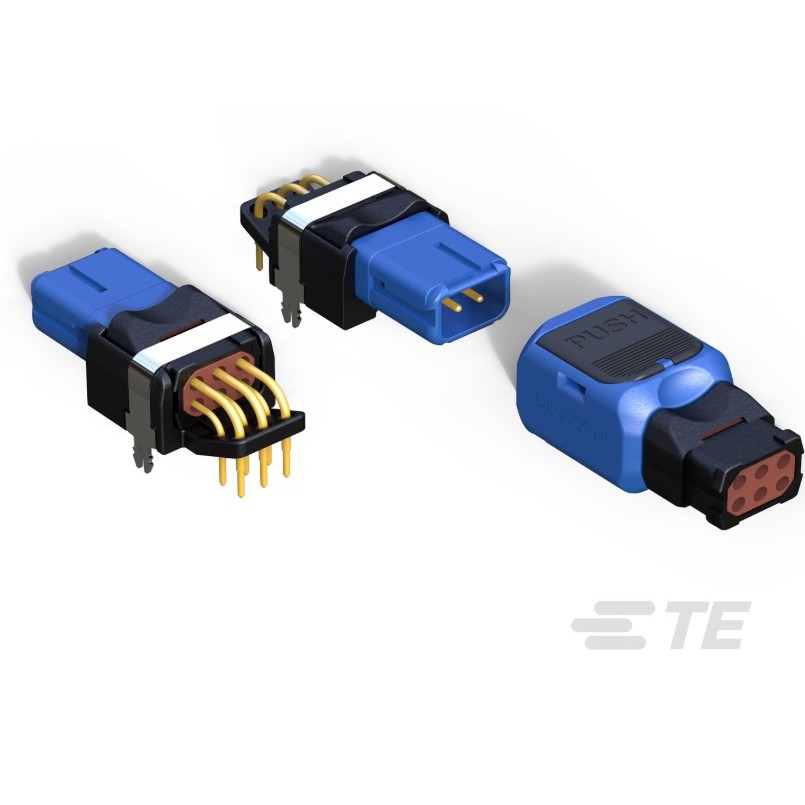

Image shown is a representation only
Manufacturer
Manufacturer No
D369-G99-NS4
Packaging
Bulk
Description
D369 PCB MOUNT ASSY, 9 WAY, SOCK
Detailed Description
9 Position Receptacle Connector Board Edge, Through Hole, Right Angle Gold
DataSheet
Mfr
TE Connectivity Deutsch Connectors
Style
Board to Cable/Wire
Series
369
Features
Board Guide, Board Lock
Packaging
Bulk
Part Status
Active
Termination
Solder
Contact Type
Female Socket
Contact Shape
Circular
Mounting Type
Board Edge, Through Hole, Right Angle
Connector Type
Receptacle
Fastening Type
Friction Lock
Number of Rows
3
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.331" (8.40mm)
Ingress Protection
IP67
Base Product Number
D369
Insulation Material
Polyetherimide, Glass Filled
Number of Positions
9
Contact Length - Post
0.122" (3.10mm)
Operating Temperature
-55°C ~ 175°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Deutsch Connectors |
| Style | Board to Cable/Wire |
| Series | 369 |
| Features | Board Guide, Board Lock |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Female Socket |
| Contact Shape | Circular |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Friction Lock |
| Number of Rows | 3 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.331" (8.40mm) |
| Ingress Protection | IP67 |
| Base Product Number | D369 |
| Insulation Material | Polyetherimide, Glass Filled |
| Number of Positions | 9 |
| Contact Length - Post | 0.122" (3.10mm) |
| Operating Temperature | -55°C ~ 175°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
