Step1: Product

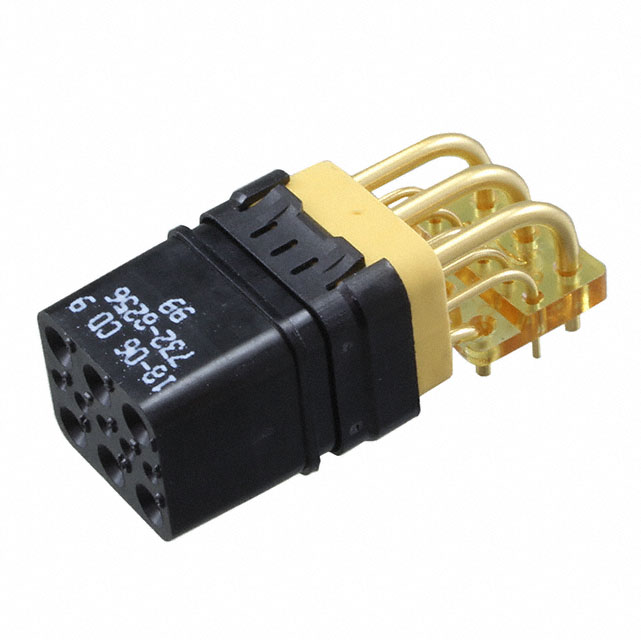

TE Connectivity Deutsch Connectors 732-8256-99
Image shown is a representation only
Manufacturer
Manufacturer No
732-8256-99
Packaging
Bulk
Description
732-8256-99
Detailed Description
11 Position Plug Connector Through Hole, Right Angle Gold
DataSheet
Mfr
TE Connectivity Deutsch Connectors
Style
Board to Cable/Wire
Series
DMC-MD
Packaging
Bulk
Part Status
Active
Termination
Solder
Applications
Automotive
Contact Type
Female Socket
Contact Shape
Circular
Mounting Type
Through Hole, Right Angle
Connector Type
Plug
Fastening Type
Locking Ramp
Number of Rows
3
Insulation Color
Black
Base Product Number
732
Number of Positions
11
Current Rating (Amps)
13A
Operating Temperature
-55°C ~ 175°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Deutsch Connectors |
| Style | Board to Cable/Wire |
| Series | DMC-MD |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive |
| Contact Type | Female Socket |
| Contact Shape | Circular |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Plug |
| Fastening Type | Locking Ramp |
| Number of Rows | 3 |
| Insulation Color | Black |
| Base Product Number | 732 |
| Number of Positions | 11 |
| Current Rating (Amps) | 13A |
| Operating Temperature | -55°C ~ 175°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
