TE Connectivity Deutsch Connectors 2209129-1

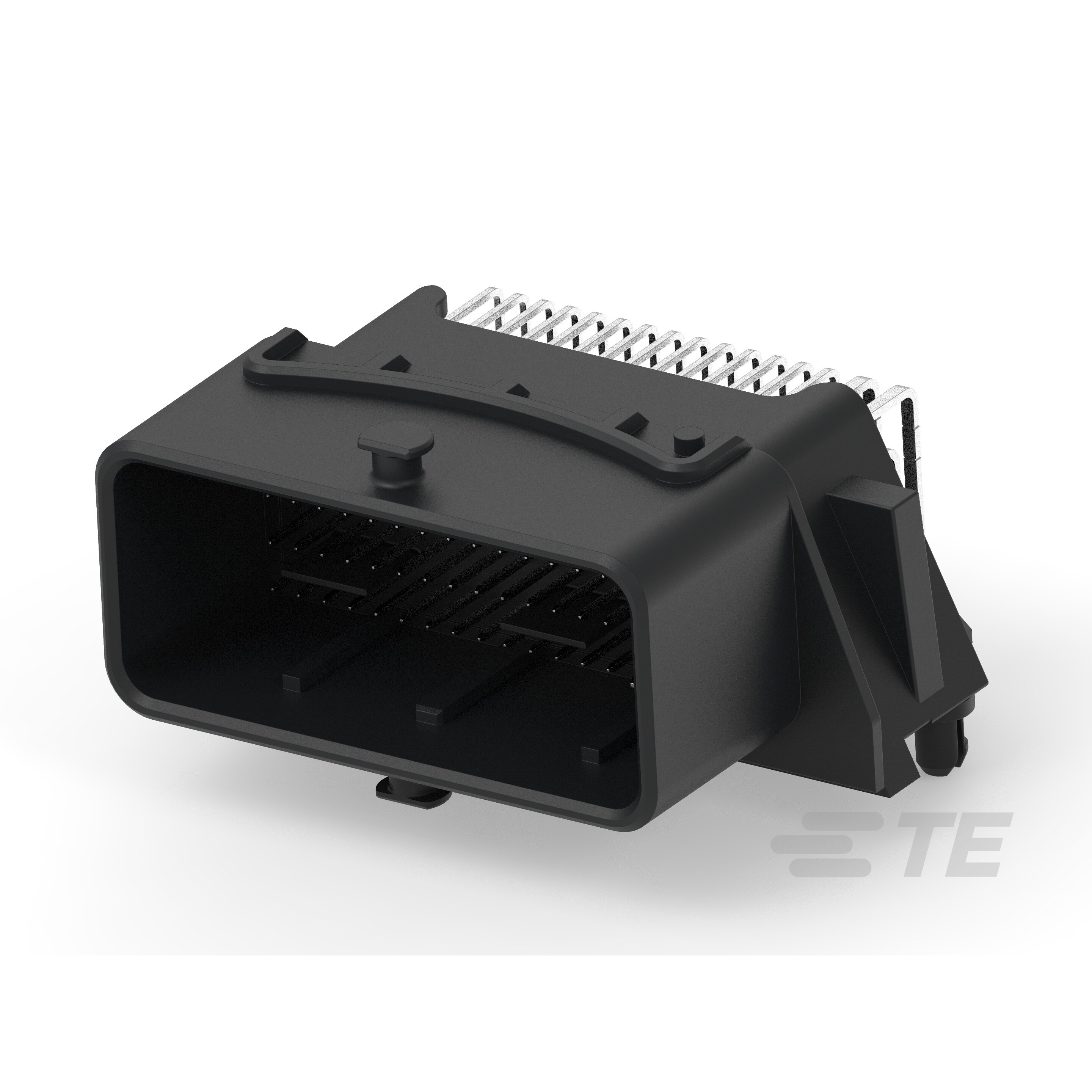

Image shown is a representation only
Manufacturer
Manufacturer No
2209129-1
Quantity
1143
Availability
In Stock
Packaging
Box
Description
CMC 64PIN HEADER CONNECTOR ASSEM
Detailed Description
Connector Header Through Hole, Right Angle 64 position 0.146" (3.70mm)
DataSheet
Mfr
TE Connectivity Deutsch Connectors
Style
Board to Cable/Wire
Series
CMC
Features
Board Guide
Packaging
Box
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Rectangular, Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
4
Pitch - Mating
0.146" (3.70mm)
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
1.268" (32.20mm)
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions
64
Row Spacing - Mating
0.165" (4.20mm)
Contact Finish - Post
Tin
Contact Length - Post
0.150" (3.81mm)
Operating Temperature
-40°C ~ 125°C
Contact Finish - Mating
Tin
Contact Length - Mating
0.264" (6.70mm)
Number of Positions Loaded
All
Contact Finish Thickness - Post
12.0µin (0.30µm)
Contact Finish Thickness - Mating
31.5µin (0.80µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Deutsch Connectors |
| Style | Board to Cable/Wire |
| Series | CMC |
| Features | Board Guide |
| Packaging | Box |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Rectangular, Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 4 |
| Pitch - Mating | 0.146" (3.70mm) |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 1.268" (32.20mm) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 64 |
| Row Spacing - Mating | 0.165" (4.20mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.150" (3.81mm) |
| Operating Temperature | -40°C ~ 125°C |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.264" (6.70mm) |
| Number of Positions Loaded | All |
| Contact Finish Thickness - Post | 12.0µin (0.30µm) |
| Contact Finish Thickness - Mating | 31.5µin (0.80µm) |
