Step1: Product

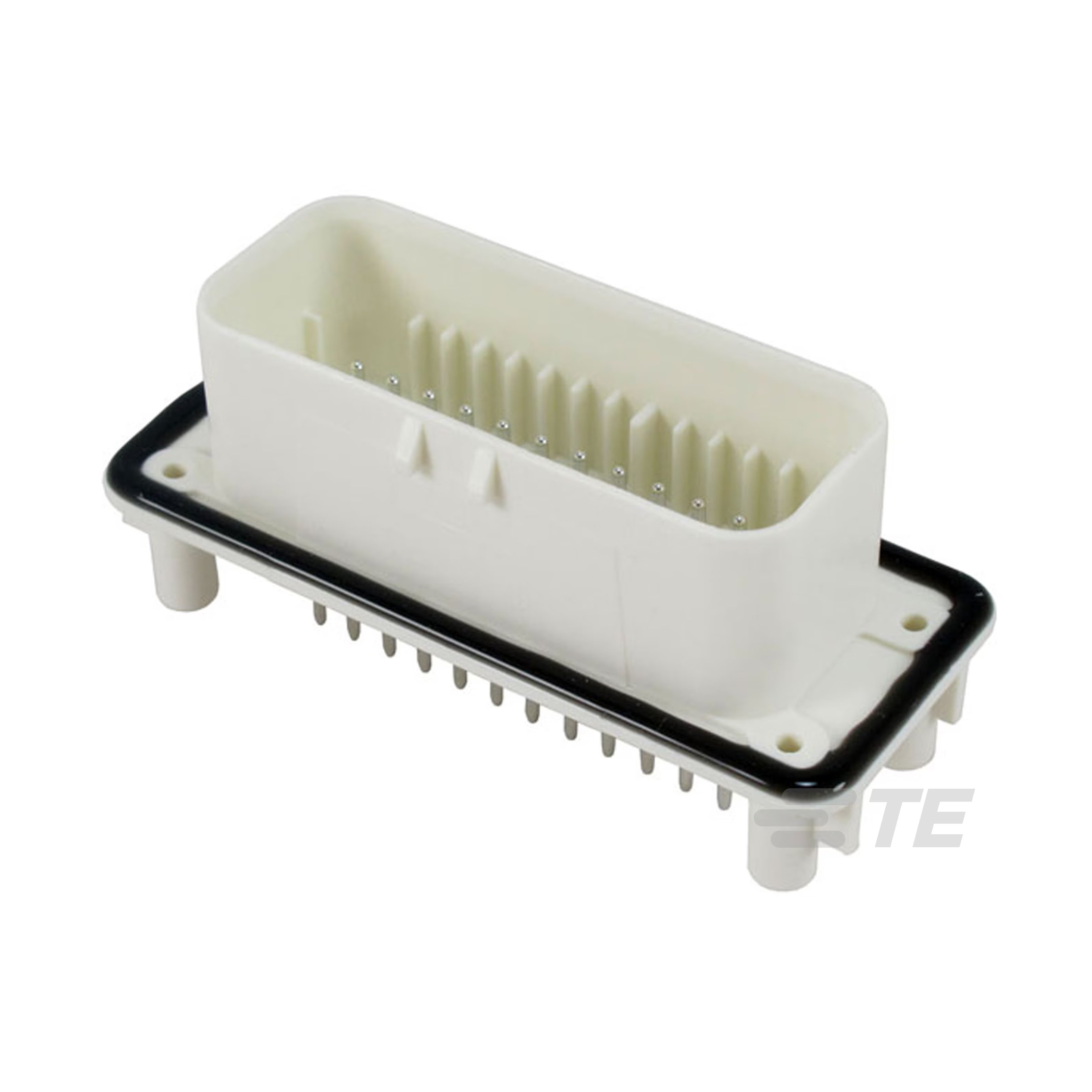

TE Connectivity Deutsch Connectors 776231-2
Image shown is a representation only
Manufacturer
Manufacturer No
776231-2
Quantity
93
Availability
In Stock
Packaging
Tray
Description
CONN HEADER VERT 35POS 4MM
Detailed Description
Connector Header Panel Mount, Through Hole 35 position 0.157" (4.00mm)
DataSheet
Mfr
TE Connectivity Deutsch Connectors
Style
Board to Cable/Wire
Series
AMPSEAL
Features
Mounting Flange, Sealed
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive, Industrial
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Panel Mount, Through Hole
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
3
Pitch - Mating
0.157" (4.00mm)
Voltage Rating
250VAC
Contact Material
Brass
Insulation Color
Natural
Base Product Number
776231
Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled
Number of Positions
35
Row Spacing - Mating
0.157" (4.00mm)
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Deutsch Connectors |
| Style | Board to Cable/Wire |
| Series | AMPSEAL |
| Features | Mounting Flange, Sealed |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, Industrial |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Panel Mount, Through Hole |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 3 |
| Pitch - Mating | 0.157" (4.00mm) |
| Voltage Rating | 250VAC |
| Contact Material | Brass |
| Insulation Color | Natural |
| Base Product Number | 776231 |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 35 |
| Row Spacing - Mating | 0.157" (4.00mm) |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
