Step1: Product

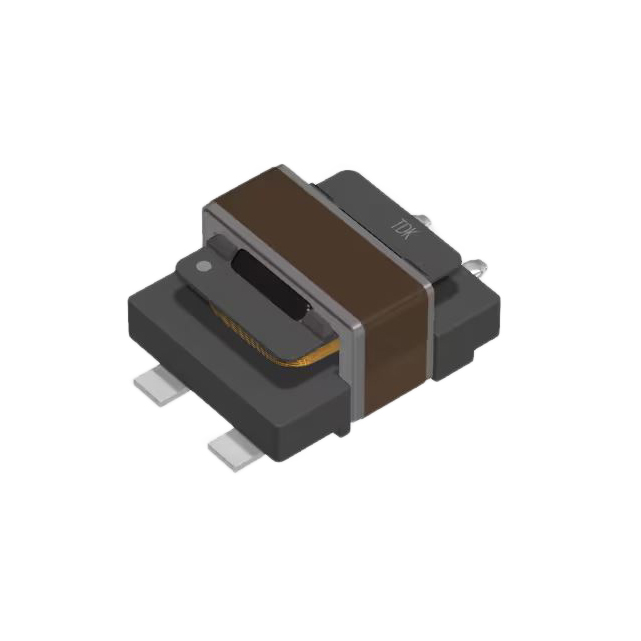

TDK VST16/8EE-201S1C2
Image shown is a representation only
Manufacturer
Manufacturer No
VST16/8EE-201S1C2
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
TRANSFORMER
Detailed Description
40 A 1:200 Current Sense Transformer 0.7mOhm Primary, 10Ohm Secondary 42.2 mH Surface Mount
Datasheet
Type
Invasive
Series
VST
Packaging
Tape & Reel (TR); Cut Tape (CT)
Inductance
42.2 mH
Manufacturer
TDK
Current Ratio
200:1
Mounting Type
Surface Mount
Size / Dimension
0.776" L x 0.689" W (19.70mm x 17.50mm)
Termination Style
Gull Wing
DC Resistance (DCR)
0.7mOhm Primary, 10Ohm Secondary
Current Rating (Amps)
40 A
Height - Seated (Max)
0.425" (10.80mm)
Turns Ratio - Primary:Secondary
1:200
| Attribute | Value |
|---|---|
| Type | Invasive |
| Series | VST |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Inductance | 42.2 mH |
| Manufacturer | TDK |
| Current Ratio | 200:1 |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.776" L x 0.689" W (19.70mm x 17.50mm) |
| Termination Style | Gull Wing |
| DC Resistance (DCR) | 0.7mOhm Primary, 10Ohm Secondary |
| Current Rating (Amps) | 40 A |
| Height - Seated (Max) | 0.425" (10.80mm) |
| Turns Ratio - Primary:Secondary | 1:200 |
