Step1: Product

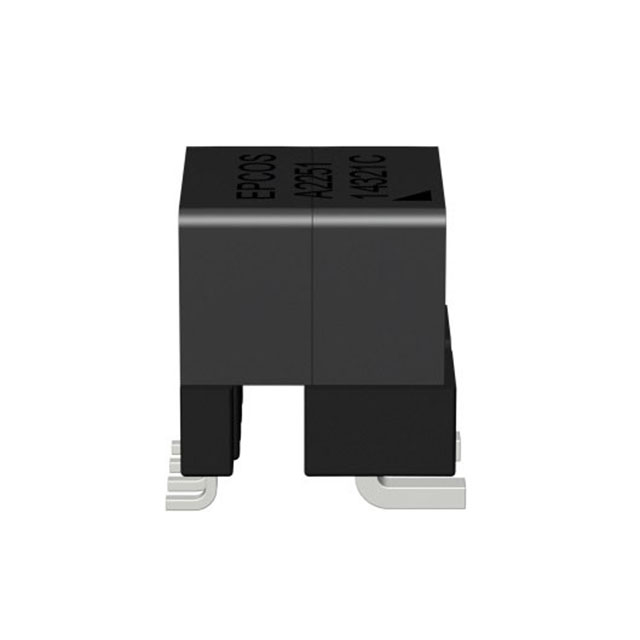

TDK B78419A2251A003
Image shown is a representation only
Manufacturer
Manufacturer No
B78419A2251A003
Quantity
95
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CURR SENSE XFMR 1:100 SMD
Detailed Description
1:100 Current Sense Transformer 50kHz ~ 250kHz 0.5mOhm Primary, 3.1Ohm Secondary 7 mH Surface Mount
DataSheet
Type
Invasive
Series
B78419
Weight
0.011 lb (4.99 g)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Inductance
7 mH
Part Status
Active
Manufacturer
TDK
Mounting Type
Surface Mount
Frequency Range
50kHz ~ 250kHz
Size / Dimension
0.504" L x 0.535" W (12.80mm x 13.60mm)
Termination Style
Gull Wing
DC Resistance (DCR)
0.5mOhm Primary, 3.1Ohm Secondary
Height - Seated (Max)
0.567" (14.40mm)
Turns Ratio - Primary:Secondary
1:100
| Attribute | Value |
|---|---|
| Type | Invasive |
| Series | B78419 |
| Weight | 0.011 lb (4.99 g) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Inductance | 7 mH |
| Part Status | Active |
| Manufacturer | TDK |
| Mounting Type | Surface Mount |
| Frequency Range | 50kHz ~ 250kHz |
| Size / Dimension | 0.504" L x 0.535" W (12.80mm x 13.60mm) |
| Termination Style | Gull Wing |
| DC Resistance (DCR) | 0.5mOhm Primary, 3.1Ohm Secondary |
| Height - Seated (Max) | 0.567" (14.40mm) |
| Turns Ratio - Primary:Secondary | 1:100 |
