TDK B82801C2245A200

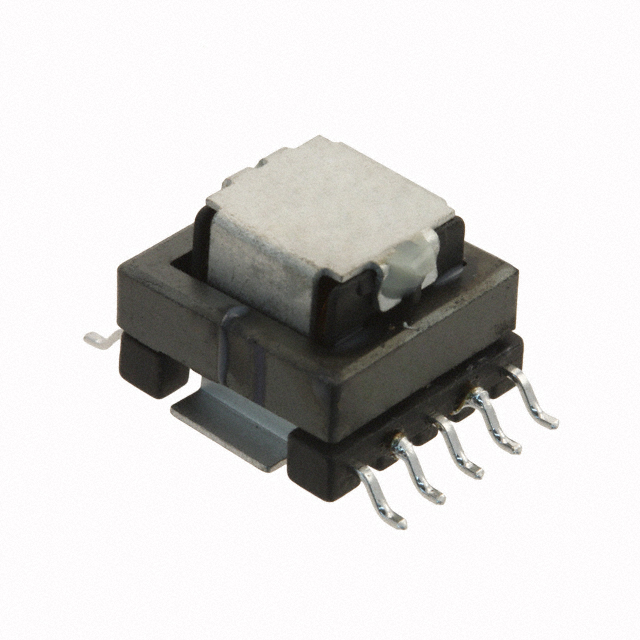

Image shown is a representation only
Manufacturer
Manufacturer No
B82801C2245A200
Quantity
526
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CURR SENSE XFMR 1:200 SMD
Detailed Description
1:200 Current Sense Transformer 50kHz ~ 500kHz 0.28mOhm Primary, 2.9Ohm Secondary 22.4 mH Surface Mount
DataSheet
Type
Invasive
Series
B82801C
Weight
0.011 lb (4.99 g)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Inductance
22.4 mH
Part Status
Active
Manufacturer
TDK
Mounting Type
Surface Mount
Frequency Range
50kHz ~ 500kHz
Size / Dimension
0.560" L x 0.530" W (14.22mm x 13.46mm)
Termination Style
Gull Wing
DC Resistance (DCR)
0.28mOhm Primary, 2.9Ohm Secondary
Height - Seated (Max)
0.394" (10.00mm)
Turns Ratio - Primary:Secondary
1:200
| Attribute | Value |
|---|---|
| Type | Invasive |
| Series | B82801C |
| Weight | 0.011 lb (4.99 g) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Inductance | 22.4 mH |
| Part Status | Active |
| Manufacturer | TDK |
| Mounting Type | Surface Mount |
| Frequency Range | 50kHz ~ 500kHz |
| Size / Dimension | 0.560" L x 0.530" W (14.22mm x 13.46mm) |
| Termination Style | Gull Wing |
| DC Resistance (DCR) | 0.28mOhm Primary, 2.9Ohm Secondary |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Turns Ratio - Primary:Secondary | 1:200 |
