TDK B82801B0205A100

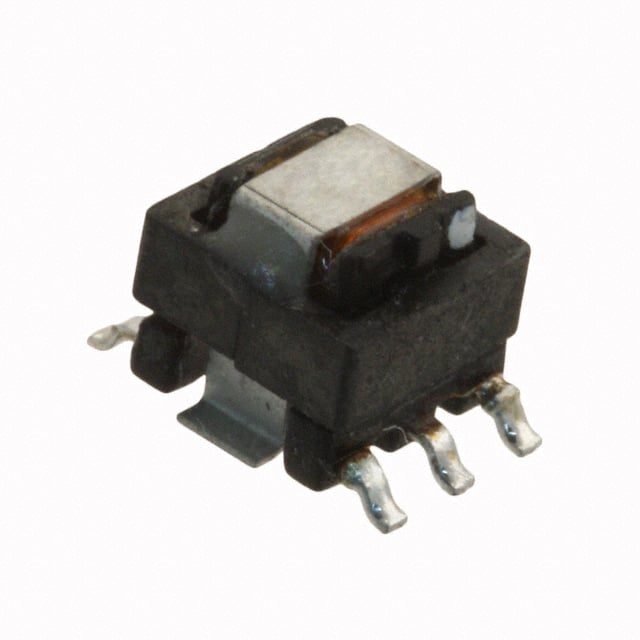

Image shown is a representation only
Manufacturer
Manufacturer No
B82801B0205A100
Quantity
788
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CURR SENSE XFMR 1:100 SMD
Detailed Description
1:100 Current Sense Transformer 50kHz ~ 1MHz 0.8mOhm Primary, 5.5Ohm Secondary 2 mH Surface Mount
DataSheet
Type
Invasive
Series
B82801B
Weight
0.014 oz (0.4 g)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Inductance
2 mH
Part Status
Active
Manufacturer
TDK
Mounting Type
Surface Mount
Frequency Range
50kHz ~ 1MHz
Size / Dimension
0.280" L x 0.320" W (7.11mm x 8.13mm)
Termination Style
Gull Wing
DC Resistance (DCR)
0.8mOhm Primary, 5.5Ohm Secondary
Height - Seated (Max)
0.200" (5.08mm)
Turns Ratio - Primary:Secondary
1:100
| Attribute | Value |
|---|---|
| Type | Invasive |
| Series | B82801B |
| Weight | 0.014 oz (0.4 g) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Inductance | 2 mH |
| Part Status | Active |
| Manufacturer | TDK |
| Mounting Type | Surface Mount |
| Frequency Range | 50kHz ~ 1MHz |
| Size / Dimension | 0.280" L x 0.320" W (7.11mm x 8.13mm) |
| Termination Style | Gull Wing |
| DC Resistance (DCR) | 0.8mOhm Primary, 5.5Ohm Secondary |
| Height - Seated (Max) | 0.200" (5.08mm) |
| Turns Ratio - Primary:Secondary | 1:100 |
