Switchcraft Inc. 712RAHU

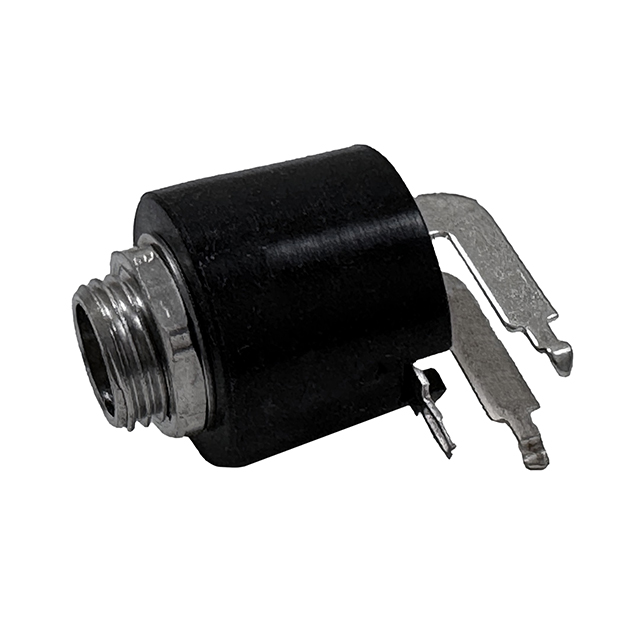

Image shown is a representation only
Manufacturer
Manufacturer No
712RAHU
Packaging
Bulk
Description
SEALED UNMATED DC POWER JACK, 2.
Detailed Description
Power Barrel Connector Jack 2.50mm ID (0.098") Panel Mount, Through Hole, Right Angle
DataSheet
Gender
Male
Series
712
Features
Board Lock
Packaging
Bulk
Shielding
Unshielded
Body Color
Silver, Black
Part Status
Active
Termination
Kinked Pin, Solder Eyelet
Thread Size
5/16"-32
Manufacturer
Switchcraft Inc.
Body Material
Copper Alloy
Mounting Type
Panel Mount, Through Hole, Right Angle
Connector Type
Jack
Voltage - Rated
24VDC
Contact Material
Copper Alloy
Housing Material
Thermoplastic
Mounting Feature
Bulkhead - Front Side Nut
Ingress Protection
IP68 - Dust Tight, Waterproof
Internal Switch(s)
Single Switch, Normally Closed
Current Rating (Amps)
7.5 A
Operating Temperature
-40°C ~ 105°C
Contact Material - Plating
Silver
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
2.50mm ID (0.098")
| Attribute | Value |
|---|---|
| Gender | Male |
| Series | 712 |
| Features | Board Lock |
| Packaging | Bulk |
| Shielding | Unshielded |
| Body Color | Silver, Black |
| Part Status | Active |
| Termination | Kinked Pin, Solder Eyelet |
| Thread Size | 5/16"-32 |
| Manufacturer | Switchcraft Inc. |
| Body Material | Copper Alloy |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Jack |
| Voltage - Rated | 24VDC |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Internal Switch(s) | Single Switch, Normally Closed |
| Current Rating (Amps) | 7.5 A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Material - Plating | Silver |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098") |
