Step1: Product

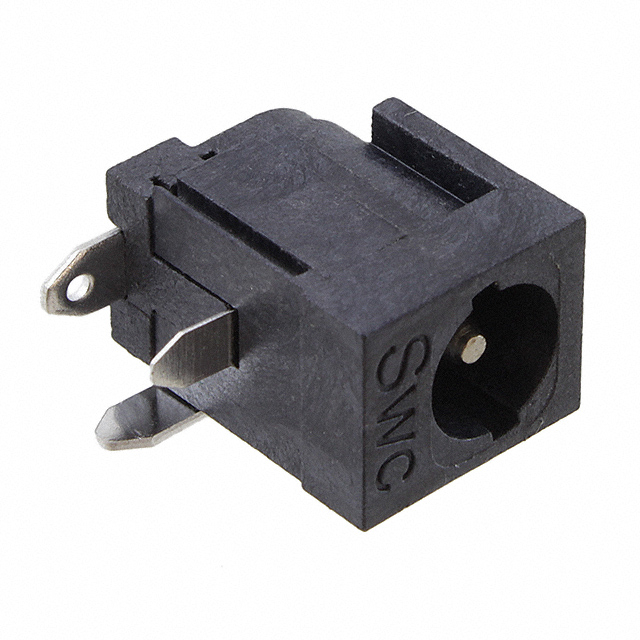

Switchcraft Inc. RAPC722BK
Image shown is a representation only
Manufacturer
Manufacturer No
RAPC722BK
Quantity
23
Availability
In Stock
Packaging
Bulk
Description
CONN PWR JACK 2X5.5MM SOLDER
Detailed Description
Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Through Hole, Right Angle
DataSheet
Gender
Male
Packaging
Bulk
Shielding
Unshielded
Body Color
Black
Part Status
Active
Termination
Solder Eyelet(s)
Manufacturer
Switchcraft Inc.
Mounting Type
Through Hole, Right Angle
Connector Type
Jack
Actual Diameter
0.079" (2.00mm ID), 0.248" (6.30mm OD)
Contact Material
Brass
Housing Material
Thermoplastic
Internal Switch(s)
Single Switch, Normally Closed
Base Product Number
RAPC72
Current Rating (Amps)
5 A
Contact Material - Plating
Silver
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
2.00mm ID (0.079"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Male |
| Packaging | Bulk |
| Shielding | Unshielded |
| Body Color | Black |
| Part Status | Active |
| Termination | Solder Eyelet(s) |
| Manufacturer | Switchcraft Inc. |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Jack |
| Actual Diameter | 0.079" (2.00mm ID), 0.248" (6.30mm OD) |
| Contact Material | Brass |
| Housing Material | Thermoplastic |
| Internal Switch(s) | Single Switch, Normally Closed |
| Base Product Number | RAPC72 |
| Current Rating (Amps) | 5 A |
| Contact Material - Plating | Silver |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 2.00mm ID (0.079"), 5.50mm OD (0.217") |
