Step1: Product

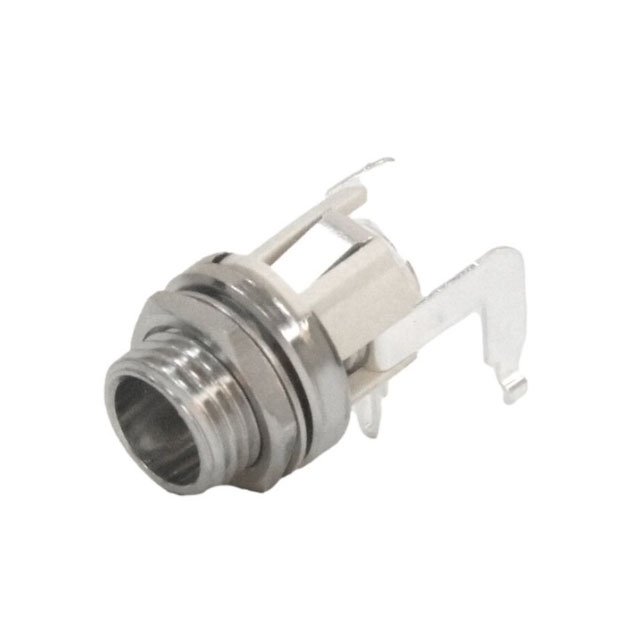

Switchcraft Inc. 712RAHLP
Image shown is a representation only
Manufacturer
Manufacturer No
712RAHLP
Packaging
Bulk
Description
LOW PROFILE RAPC MOUNT DC POWER
Detailed Description
Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Panel Mount, Through Hole, Right Angle
Datasheet
Gender
Male
Series
LP
Features
Mounting Hardware, Thread Lock
Packaging
Bulk
Shielding
Unshielded
Body Color
Silver
Termination
Solder
Thread Size
5/16"-32
Manufacturer
Switchcraft Inc.
Body Material
Copper Alloy
Mounting Type
Panel Mount, Through Hole, Right Angle
Connector Type
Jack
Voltage - Rated
12VDC
Contact Material
Copper Alloy
Housing Material
Copper Alloy
Mounting Feature
Bulkhead - Front Side Nut
Internal Switch(s)
Single Switch, Normally Closed
Mating Length/Depth
0.374" (9.50mm)
Current Rating (Amps)
7.5 A
Operating Temperature
-40°C ~ 105°C
Contact Material - Plating
Silver
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
2.50mm ID (0.098"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Male |
| Series | LP |
| Features | Mounting Hardware, Thread Lock |
| Packaging | Bulk |
| Shielding | Unshielded |
| Body Color | Silver |
| Termination | Solder |
| Thread Size | 5/16"-32 |
| Manufacturer | Switchcraft Inc. |
| Body Material | Copper Alloy |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Jack |
| Voltage - Rated | 12VDC |
| Contact Material | Copper Alloy |
| Housing Material | Copper Alloy |
| Mounting Feature | Bulkhead - Front Side Nut |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mating Length/Depth | 0.374" (9.50mm) |
| Current Rating (Amps) | 7.5 A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Material - Plating | Silver |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
