Step1: Product

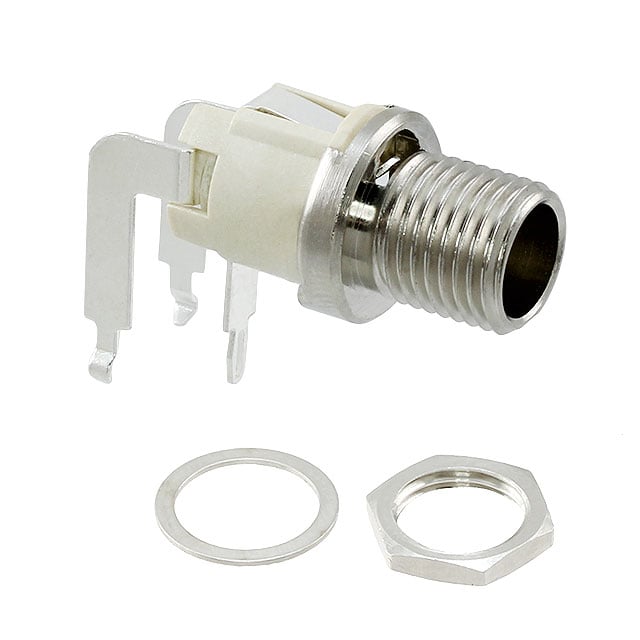

Switchcraft Inc. 712RAH
Image shown is a representation only
Manufacturer
Manufacturer No
712RAH
Packaging
Bulk
Description
JACK, 2.5MM PIN, SHORT BUSHING,
Detailed Description
Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole, Right Angle
DataSheet
Gender
Male
Features
Mounting Hardware, Thread Lock
Includes
3 pcs - 1 Connector, 1 Nut, 1 Washer
Packaging
Bulk
Shielding
Unshielded
Body Color
Silver, White
Part Status
Active
Termination
Solder Eyelet(s)
Thread Size
5/16"-32
Manufacturer
Switchcraft Inc.
Body Material
Copper Alloy
Mounting Type
Through Hole, Right Angle
Connector Type
Jack
Actual Diameter
0.098" (2.50mm ID), 0.217" (5.50mm OD)
Voltage - Rated
24VDC
Contact Material
Copper Alloy
Housing Material
Thermoplastic
Mounting Feature
Bulkhead - Front Side Nut
Internal Switch(s)
Single Switch
Base Product Number
712RA
Contact Material - Plating
Nickel
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
2.50mm ID (0.098"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Male |
| Features | Mounting Hardware, Thread Lock |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Packaging | Bulk |
| Shielding | Unshielded |
| Body Color | Silver, White |
| Part Status | Active |
| Termination | Solder Eyelet(s) |
| Thread Size | 5/16"-32 |
| Manufacturer | Switchcraft Inc. |
| Body Material | Copper Alloy |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Jack |
| Actual Diameter | 0.098" (2.50mm ID), 0.217" (5.50mm OD) |
| Voltage - Rated | 24VDC |
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut |
| Internal Switch(s) | Single Switch |
| Base Product Number | 712RA |
| Contact Material - Plating | Nickel |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
