Step1: Product

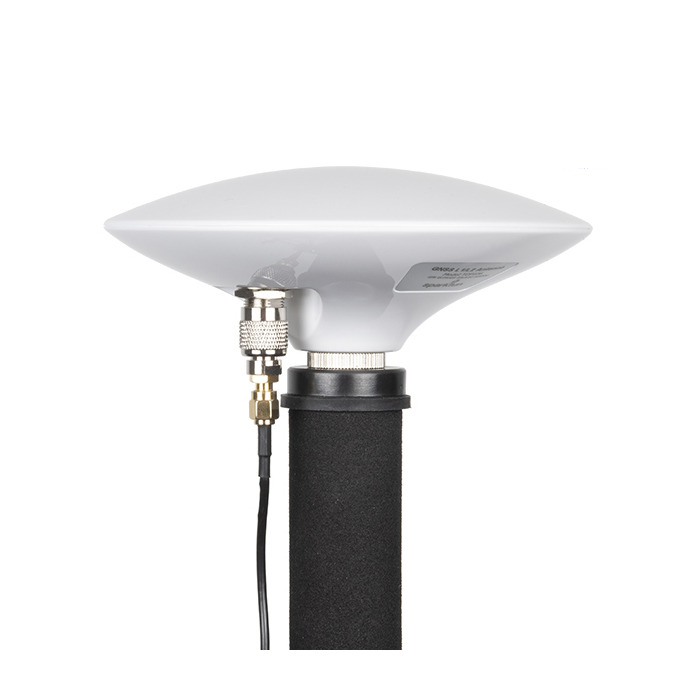

SparkFun Electronics 17751

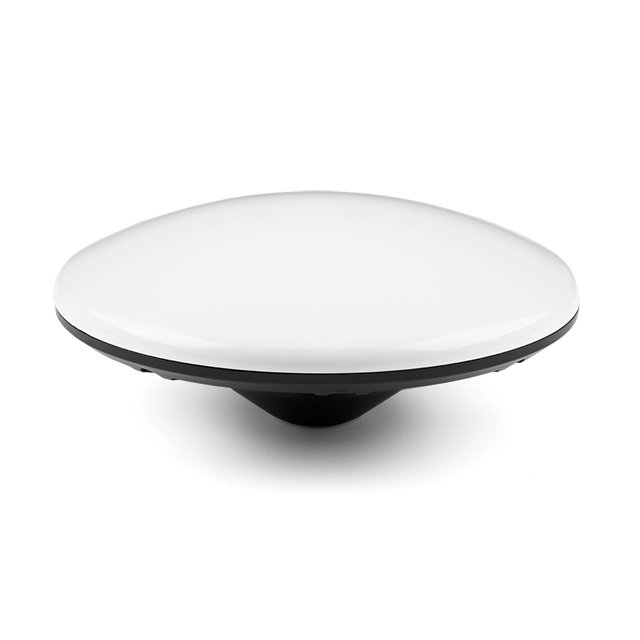

Image shown is a representation only
Manufacturer
Manufacturer No
17751
Packaging
Bulk
Description
GNSS MULTI-BAND L1/L2 SURVEYING
Detailed Description
RF ANTENNA BeiDou, Galileo, GLONASS, GNSS, GPS Dome TNC Female Screw Mount
DataSheet
Gain
5dBi, 5dBi
VSWR
2
Features
LNA
Packaging
Bulk
Part Status
Active
Termination
TNC Female
Antenna Type
Dome
Applications
BeiDou, Galileo, GLONASS, GNSS, GPS
Height (Max)
2.185" (55.50mm)
Manufacturer
SparkFun Electronics
Mounting Type
Screw Mount
Frequency Group
UHF (1GHz ~ 2GHz)
Frequency Range
1.198GHz ~ 1.278GHz, 1.555GHz ~ 1.615GHz
Number of Bands
2
Ingress Protection
IP67
RF Family/Standard
Navigation
Base Product Number
GPS-17
Frequency (Center/Band)
1.238GHz, 1.585GHz
| Attribute | Value |
|---|---|
| Gain | 5dBi, 5dBi |
| VSWR | 2 |
| Features | LNA |
| Packaging | Bulk |
| Part Status | Active |
| Termination | TNC Female |
| Antenna Type | Dome |
| Applications | BeiDou, Galileo, GLONASS, GNSS, GPS |
| Height (Max) | 2.185" (55.50mm) |
| Manufacturer | SparkFun Electronics |
| Mounting Type | Screw Mount |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.198GHz ~ 1.278GHz, 1.555GHz ~ 1.615GHz |
| Number of Bands | 2 |
| Ingress Protection | IP67 |
| RF Family/Standard | Navigation |
| Base Product Number | GPS-17 |
| Frequency (Center/Band) | 1.238GHz, 1.585GHz |
