Step1: Product

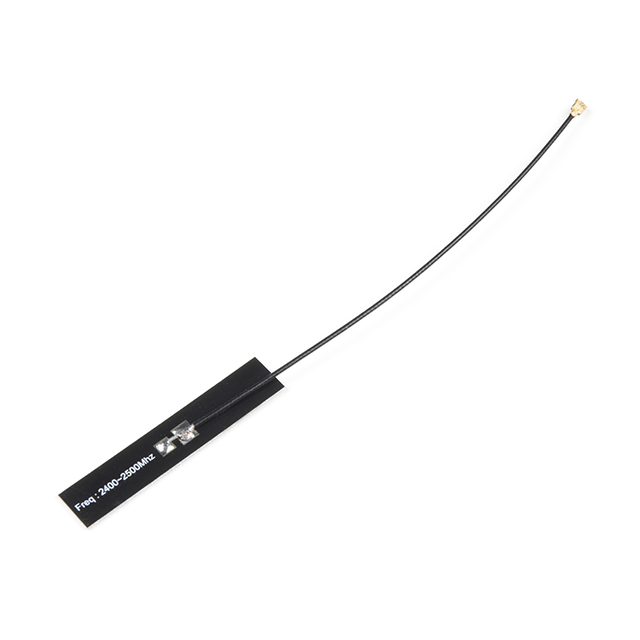

SparkFun Electronics 18086
Image shown is a representation only
Manufacturer
Manufacturer No
18086
Packaging
Bulk
Description
PCB ANTENNA - U.FL (2.4GHZ)
Detailed Description
RF ANTENNA PCB Trace MMCX, U.FL (UMCC), I-PEX MHF4 Adhesive
DataSheet
VSWR
1.8
Features
Cable - 100mm
Packaging
Bulk
Part Status
Active
Power - Max
30 W
Termination
MMCX, U.FL (UMCC), I-PEX MHF4
Antenna Type
PCB Trace
Manufacturer
SparkFun Electronics
Mounting Type
Adhesive
Frequency Group
UHF (2GHz ~ 3GHz)
Frequency Range
2.4GHz ~ 2.5GHz
Number of Bands
1
Frequency (Center/Band)
2.45GHz
| Attribute | Value |
|---|---|
| VSWR | 1.8 |
| Features | Cable - 100mm |
| Packaging | Bulk |
| Part Status | Active |
| Power - Max | 30 W |
| Termination | MMCX, U.FL (UMCC), I-PEX MHF4 |
| Antenna Type | PCB Trace |
| Manufacturer | SparkFun Electronics |
| Mounting Type | Adhesive |
| Frequency Group | UHF (2GHz ~ 3GHz) |
| Frequency Range | 2.4GHz ~ 2.5GHz |
| Number of Bands | 1 |
| Frequency (Center/Band) | 2.45GHz |
