Step1: Product

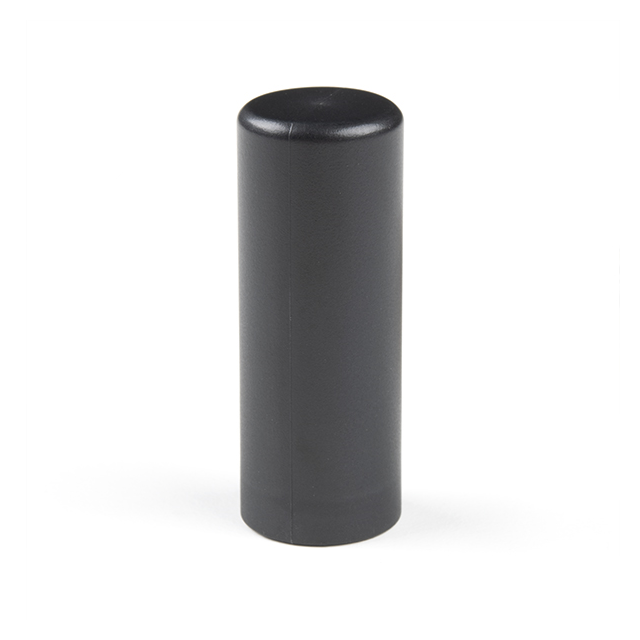

SparkFun Electronics 16838
Image shown is a representation only
Manufacturer
Manufacturer No
16838
Packaging
Bulk
Description
IRIDIUM/GPS/GLONASS PASSIVE ANTE
Detailed Description
RF ANTENNA GLONASS, GPS Whip, Straight SMA Connector Mount
DataSheet
Gain
-3dBic, 0dBic, 2.8dBic
VSWR
1.5
Packaging
Bulk
Part Status
Active
Termination
SMA
Antenna Type
Whip, Straight
Applications
GLONASS, GPS
Height (Max)
1.890" (48.00mm)
Manufacturer
SparkFun Electronics
Mounting Type
Connector Mount
Frequency Group
UHF (1GHz ~ 2GHz)
Frequency Range
1.616GHz ~ 1.626GHz
Number of Bands
3
Ingress Protection
IP67
RF Family/Standard
Navigation
Frequency (Center/Band)
1.575GHz, 1.602GHz, 1.621GHz
| Attribute | Value |
|---|---|
| Gain | -3dBic, 0dBic, 2.8dBic |
| VSWR | 1.5 |
| Packaging | Bulk |
| Part Status | Active |
| Termination | SMA |
| Antenna Type | Whip, Straight |
| Applications | GLONASS, GPS |
| Height (Max) | 1.890" (48.00mm) |
| Manufacturer | SparkFun Electronics |
| Mounting Type | Connector Mount |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.616GHz ~ 1.626GHz |
| Number of Bands | 3 |
| Ingress Protection | IP67 |
| RF Family/Standard | Navigation |
| Frequency (Center/Band) | 1.575GHz, 1.602GHz, 1.621GHz |
