Step1: Product

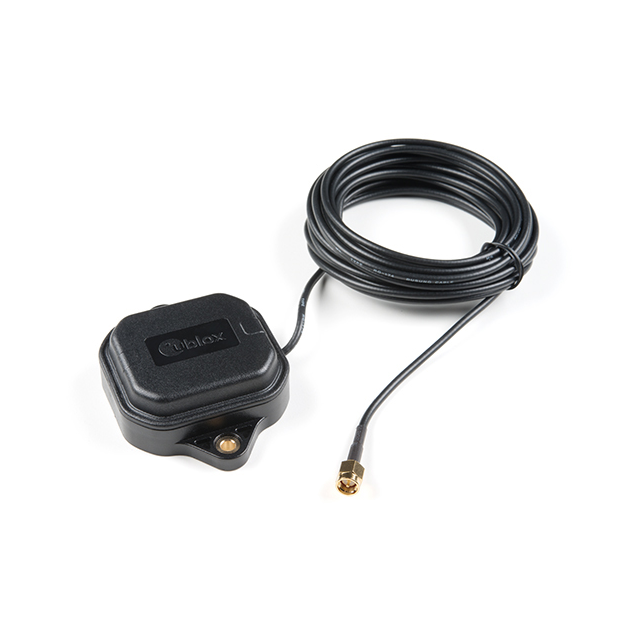

SparkFun Electronics 15192
Image shown is a representation only
Manufacturer
Manufacturer No
15192
Packaging
Bulk
Description
GNSS MULTI-BAND MAGNETIC MOUNT A
Detailed Description
RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS Module SMA Magnetic
Datasheet
Gain
2dBic, 3.5dBic
VSWR
2
Features
Cable - 5m
Packaging
Bulk
Termination
SMA
Antenna Type
Module
Applications
Beidou, Galileo, GLONASS, GNSS, GPS
Height (Max)
0.886" (22.50mm)
Manufacturer
SparkFun Electronics
Mounting Type
Magnetic
Frequency Group
UHF (1GHz ~ 2GHz)
Frequency Range
1.197GHz ~ 1.249GHz, 1.559GHz ~ 1.606GHz
Number of Bands
2
Ingress Protection
IP67
RF Family/Standard
Navigation
Frequency (Center/Band)
1.223GHz, 1.5825GHz
| Attribute | Value |
|---|---|
| Gain | 2dBic, 3.5dBic |
| VSWR | 2 |
| Features | Cable - 5m |
| Packaging | Bulk |
| Termination | SMA |
| Antenna Type | Module |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS |
| Height (Max) | 0.886" (22.50mm) |
| Manufacturer | SparkFun Electronics |
| Mounting Type | Magnetic |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.197GHz ~ 1.249GHz, 1.559GHz ~ 1.606GHz |
| Number of Bands | 2 |
| Ingress Protection | IP67 |
| RF Family/Standard | Navigation |
| Frequency (Center/Band) | 1.223GHz, 1.5825GHz |
