Step1: Product

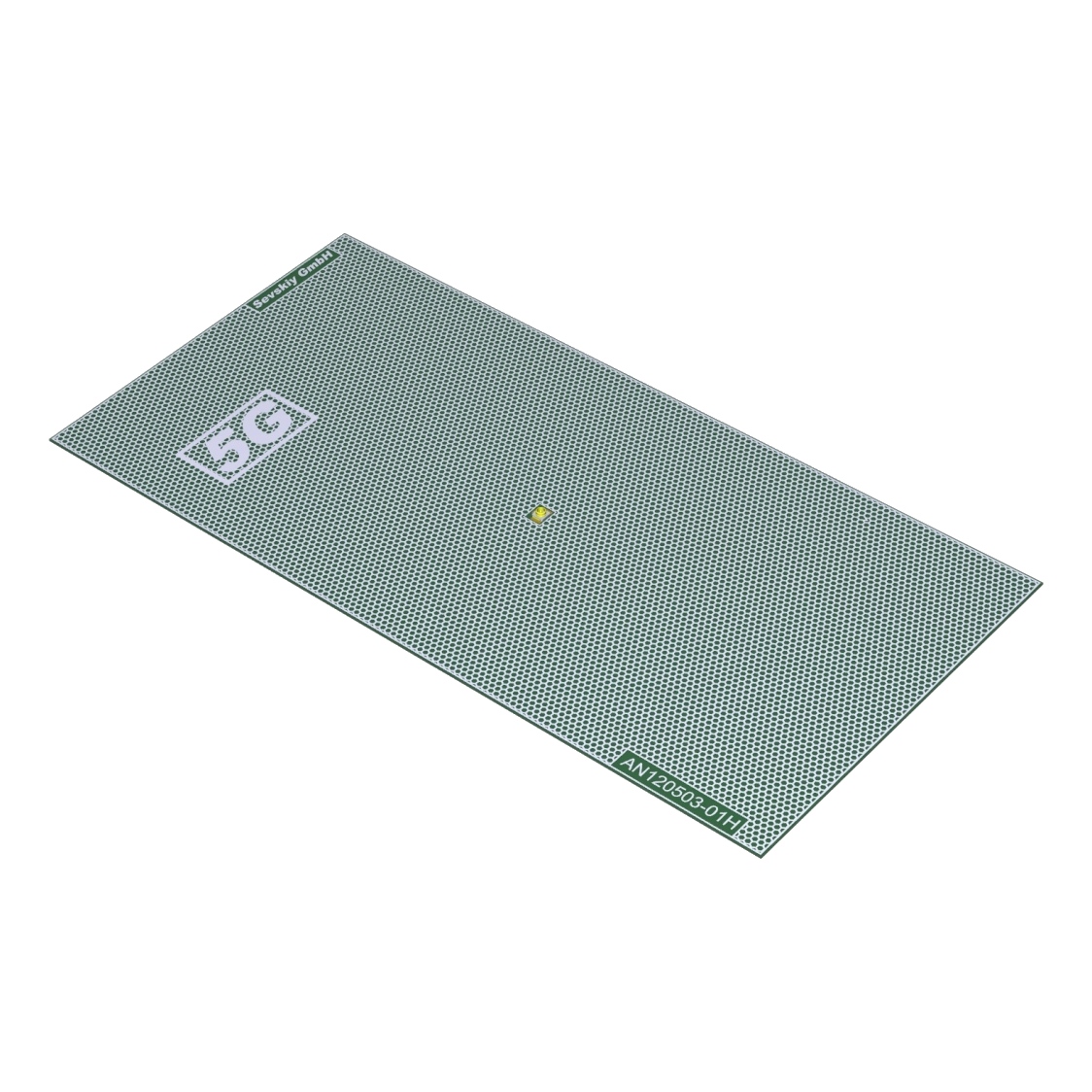

Sevskiy GmbH AN120503-01H
Image shown is a representation only
Manufacturer
Manufacturer No
AN120503-01H
Packaging
Bulk
Description
RF ANT 5G WLAN 2.4/5/6 PCB U.FL.
Detailed Description
RF ANTENNA 3G, 4G, 5G, Bluetooth, IoT, ISM, Smart Meters, UWB, WiFi UWB Dipole U.FL (UMCC), I-PEX MHF1 Bracket Mount
DataSheet
Gain
5dBi
VSWR
1.92
Series
AN120503
Features
Cable - 175mm
Packaging
Bulk
Part Status
Active
Power - Max
5 W
Return Loss
-10dB
Termination
U.FL (UMCC), I-PEX MHF1
Antenna Type
UWB Dipole
Applications
3G, 4G, 5G, Bluetooth, IoT, ISM, Smart Meters, UWB, WiFi
Height (Max)
0.031" (0.80mm)
Manufacturer
Sevskiy GmbH
Mounting Type
Bracket Mount
Frequency Group
Ultra Wide Band
Frequency Range
600MHz ~ 7.1GHz
Number of Bands
1
RF Family/Standard
Cellular, WiFi, Ultra Wideband
Frequency (Center/Band)
3.8625GHz
| Attribute | Value |
|---|---|
| Gain | 5dBi |
| VSWR | 1.92 |
| Series | AN120503 |
| Features | Cable - 175mm |
| Packaging | Bulk |
| Part Status | Active |
| Power - Max | 5 W |
| Return Loss | -10dB |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Antenna Type | UWB Dipole |
| Applications | 3G, 4G, 5G, Bluetooth, IoT, ISM, Smart Meters, UWB, WiFi |
| Height (Max) | 0.031" (0.80mm) |
| Manufacturer | Sevskiy GmbH |
| Mounting Type | Bracket Mount |
| Frequency Group | Ultra Wide Band |
| Frequency Range | 600MHz ~ 7.1GHz |
| Number of Bands | 1 |
| RF Family/Standard | Cellular, WiFi, Ultra Wideband |
| Frequency (Center/Band) | 3.8625GHz |
