Step1: Product

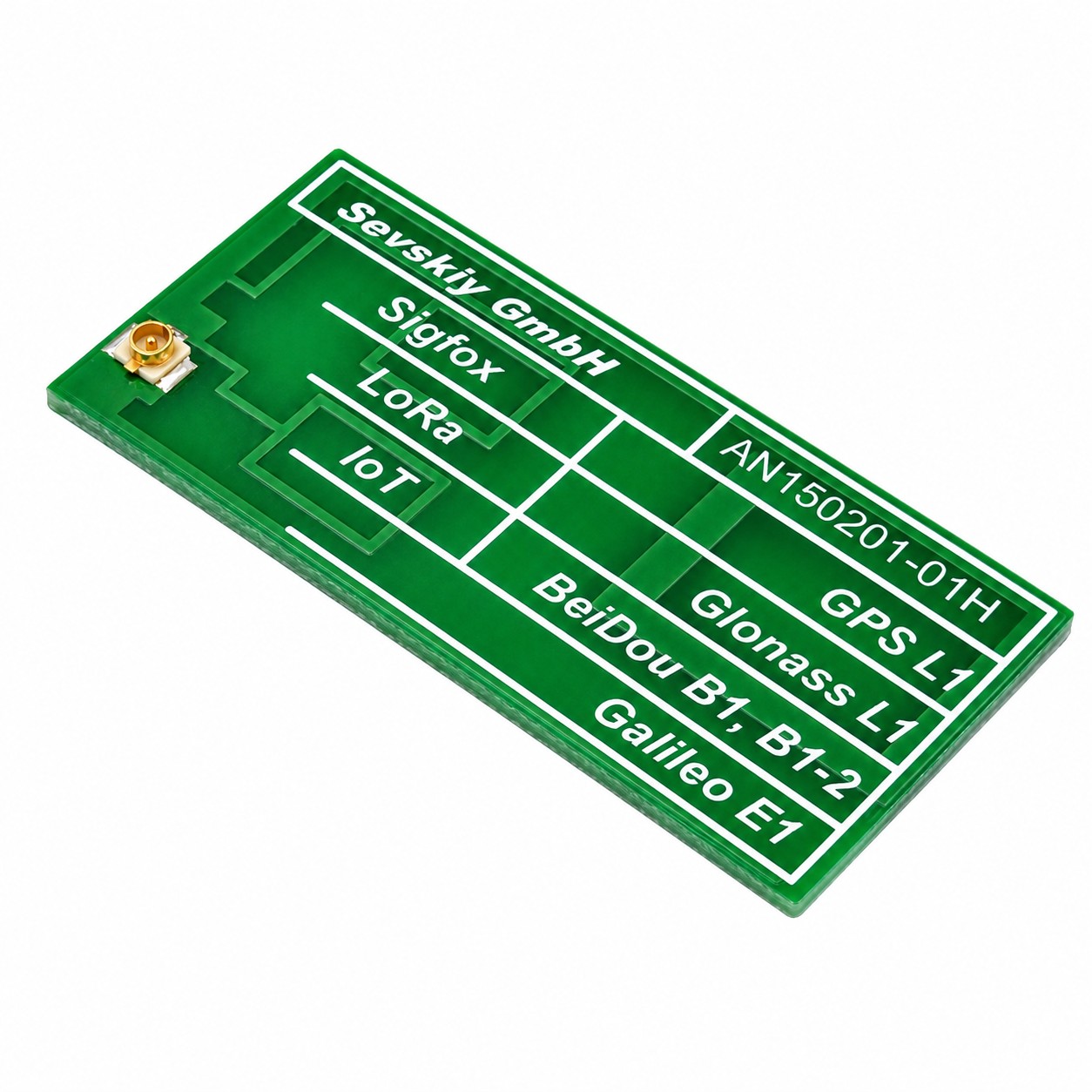

Sevskiy GmbH AN150201-01H
Image shown is a representation only
Manufacturer
Manufacturer No
AN150201-01H
Packaging
Bulk
Description
RF ANT 915MHZ/1575MHZ/2GHZ PCB
Detailed Description
RF ANTENNA 3G, 4G, 5G, Bluetooth, GNSS, IoT, ISM, LP-WAN, RFID, WiFi PCB Trace U.FL (UMCC), I-PEX MHF1 Adhesive, Bracket
Datasheet
Gain
1dBi, -1.4dBi, 3dBi
VSWR
2.61, 3.01, 1.58
Series
AN150201
Packaging
Bulk
Power - Max
5 W
Return Loss
-7dB, -6dB, -13dB
Termination
U.FL (UMCC), I-PEX MHF1
Antenna Type
PCB Trace
Applications
3G, 4G, 5G, Bluetooth, GNSS, IoT, ISM, LP-WAN, RFID, WiFi
Height (Max)
0.039" (1.00mm)
Manufacturer
Sevskiy GmbH
Mounting Type
Adhesive, Bracket
Frequency Group
UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz)
Frequency Range
791MHz ~ 924MHz, 1.559GHz ~ 1.610GHz, 2.41GHz ~ 2.485GHz
Number of Bands
3
RF Family/Standard
802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi
Frequency (Center/Band)
857.5MHz, 1.5845GHz, 2.45GHz
| Attribute | Value |
|---|---|
| Gain | 1dBi, -1.4dBi, 3dBi |
| VSWR | 2.61, 3.01, 1.58 |
| Series | AN150201 |
| Packaging | Bulk |
| Power - Max | 5 W |
| Return Loss | -7dB, -6dB, -13dB |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Antenna Type | PCB Trace |
| Applications | 3G, 4G, 5G, Bluetooth, GNSS, IoT, ISM, LP-WAN, RFID, WiFi |
| Height (Max) | 0.039" (1.00mm) |
| Manufacturer | Sevskiy GmbH |
| Mounting Type | Adhesive, Bracket |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) |
| Frequency Range | 791MHz ~ 924MHz, 1.559GHz ~ 1.610GHz, 2.41GHz ~ 2.485GHz |
| Number of Bands | 3 |
| RF Family/Standard | 802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi |
| Frequency (Center/Band) | 857.5MHz, 1.5845GHz, 2.45GHz |
