Step1: Product

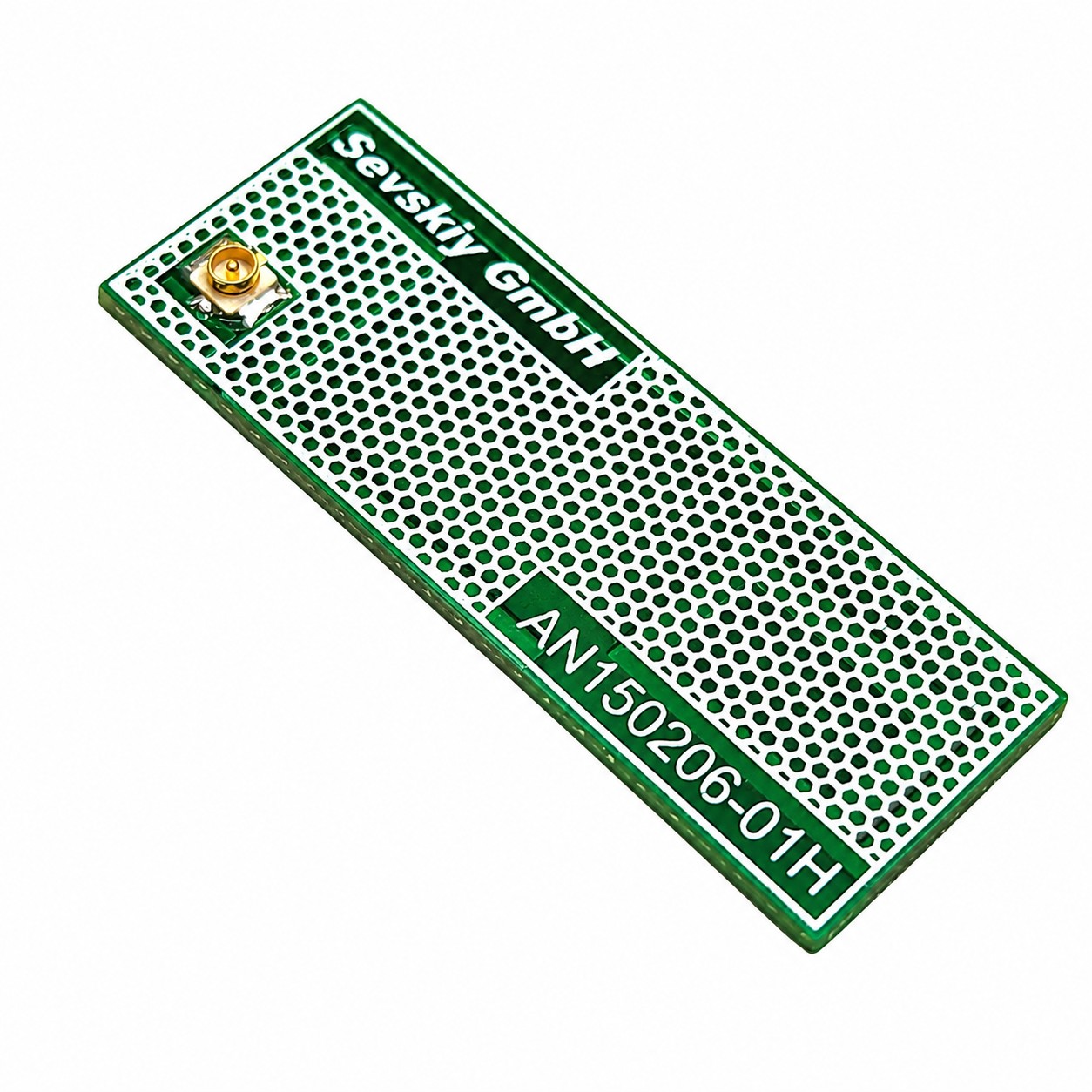

Sevskiy GmbH AN150206-01H
Image shown is a representation only
Manufacturer
Manufacturer No
AN150206-01H
Packaging
Bulk
Description
RF ANT 1.232GHZ PCB U.FL ADH
Detailed Description
RF ANTENNA BeiDou, Galileo, GLONASS, GNSS, GPS PCB Trace U.FL (UMCC), I-PEX MHF1 Adhesive, Bracket
Datasheet
Gain
3.5dBi
VSWR
1.92
Series
AN150206
Features
Cable - 175mm
Packaging
Bulk
Power - Max
5 W
Return Loss
-10dB
Termination
U.FL (UMCC), I-PEX MHF1
Antenna Type
PCB Trace
Applications
BeiDou, Galileo, GLONASS, GNSS, GPS
Height (Max)
0.039" (1.00mm)
Manufacturer
Sevskiy GmbH
Mounting Type
Adhesive, Bracket
Frequency Group
UHF (1GHz ~ 2GHz)
Frequency Range
1.164GHz ~ 1.3GHz
Number of Bands
1
RF Family/Standard
Navigation
Frequency (Center/Band)
1.232GHz
| Attribute | Value |
|---|---|
| Gain | 3.5dBi |
| VSWR | 1.92 |
| Series | AN150206 |
| Features | Cable - 175mm |
| Packaging | Bulk |
| Power - Max | 5 W |
| Return Loss | -10dB |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Antenna Type | PCB Trace |
| Applications | BeiDou, Galileo, GLONASS, GNSS, GPS |
| Height (Max) | 0.039" (1.00mm) |
| Manufacturer | Sevskiy GmbH |
| Mounting Type | Adhesive, Bracket |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.164GHz ~ 1.3GHz |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Frequency (Center/Band) | 1.232GHz |
