Step1: Product

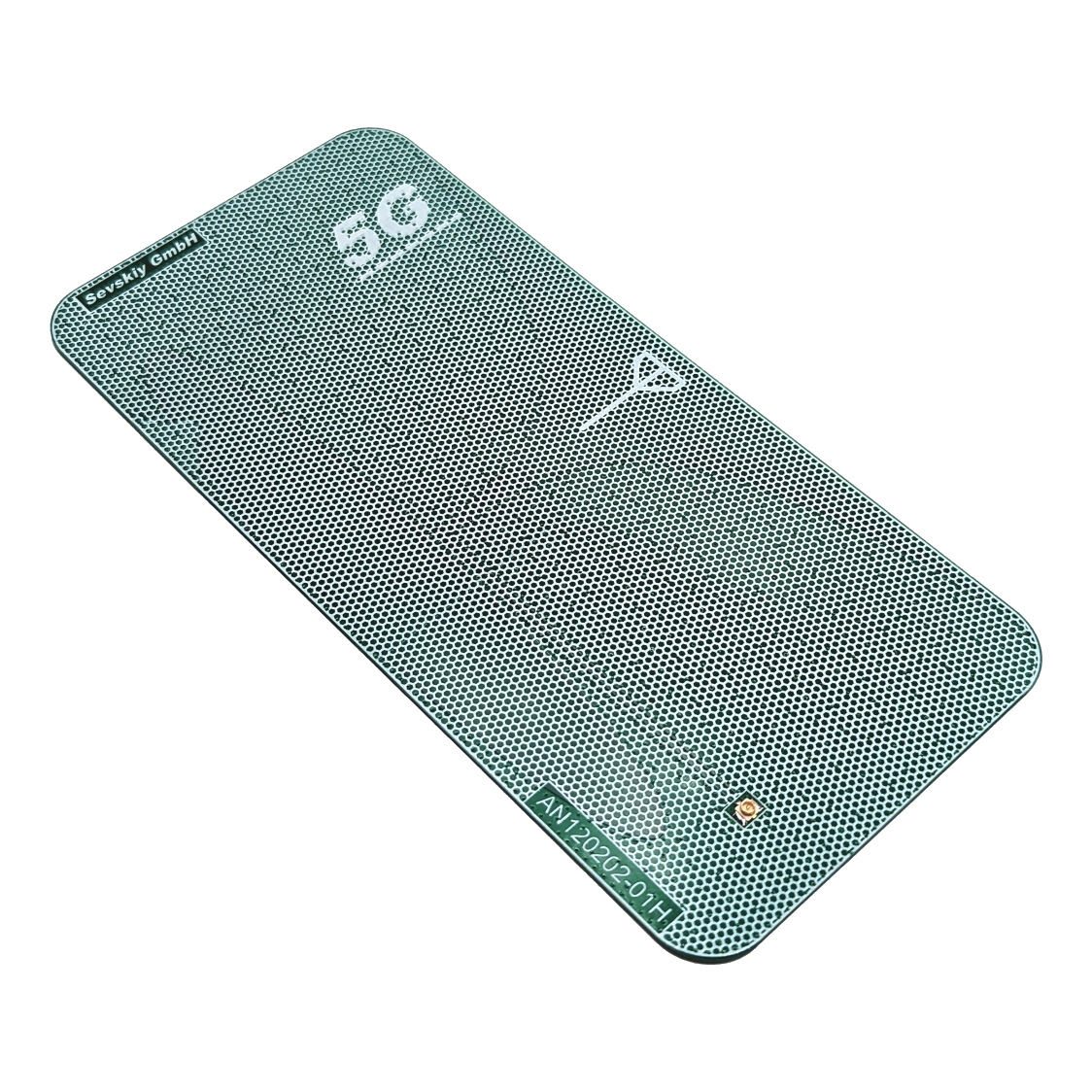

Sevskiy GmbH AN120202-01H
Image shown is a representation only
Manufacturer
Manufacturer No
AN120202-01H
Packaging
Bulk
Description
RF ANT 5G/LTE 0.6-10GHZ U.FL.
Detailed Description
RF ANTENNA 3G, 4G, 5G, Bluetooth, IoT, ISM, Smart Meters, UWB, WiFi UWB Dipole U.FL (UMCC), I-PEX MHF1 Bracket Mount
DataSheet
Gain
3dBi, 5dBi
VSWR
1.58, 1.92
Series
AN120202
Features
Cable - 180mm
Packaging
Bulk
Part Status
Active
Power - Max
5 W
Return Loss
-13dB, -10dB
Termination
U.FL (UMCC), I-PEX MHF1
Antenna Type
UWB Dipole
Applications
3G, 4G, 5G, Bluetooth, IoT, ISM, Smart Meters, UWB, WiFi
Height (Max)
0.031" (0.80mm)
Manufacturer
Sevskiy GmbH
Mounting Type
Bracket Mount
Frequency Group
Ultra Wide Band
Number of Bands
2
RF Family/Standard
Ultra Wide Band
| Attribute | Value |
|---|---|
| Gain | 3dBi, 5dBi |
| VSWR | 1.58, 1.92 |
| Series | AN120202 |
| Features | Cable - 180mm |
| Packaging | Bulk |
| Part Status | Active |
| Power - Max | 5 W |
| Return Loss | -13dB, -10dB |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Antenna Type | UWB Dipole |
| Applications | 3G, 4G, 5G, Bluetooth, IoT, ISM, Smart Meters, UWB, WiFi |
| Height (Max) | 0.031" (0.80mm) |
| Manufacturer | Sevskiy GmbH |
| Mounting Type | Bracket Mount |
| Frequency Group | Ultra Wide Band |
| Number of Bands | 2 |
| RF Family/Standard | Ultra Wide Band |
