Step1: Product
Panasonic Industry AN1201SM-TXL
Image shown is a representation only
Manufacturer
Manufacturer No
AN1201SM-TXL
Package
6-SMD (5 Leads), Flat Leads
Packaging
Tape & Reel (TR)
Description

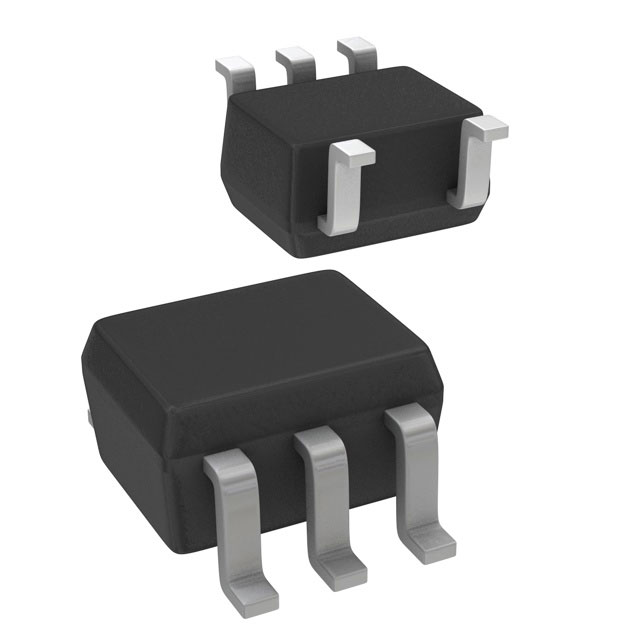

IC REG CHARGE PUMP SMINI-5DA
Detailed Description
Charge Pump Switching Regulator IC Negative Fixed -Vin 1 Output 6-SMD (5 Leads), Flat Leads
DataSheet
Mfr
Panasonic Industry
Function
Ratiometric
Topology
Charge Pump
Packaging
Tape & Reel (TR)
Output Type
Fixed
Part Status
Obsolete
Mounting Type
Surface Mount
Package / Case
6-SMD (5 Leads), Flat Leads
Number of Outputs
1
Base Product Number
AN1201
Output Configuration
Negative
Frequency - Switching
125kHz
Operating Temperature
-30°C ~ 85°C (TA)
Synchronous Rectifier
No
Voltage - Input (Max)
3V
Voltage - Input (Min)
2V
Supplier Device Package
SMINI-5DA
Voltage - Output (Min/Fixed)
-Vin
| Attribute | Value |
|---|---|
| Mfr | Panasonic Industry |
| Function | Ratiometric |
| Topology | Charge Pump |
| Packaging | Tape & Reel (TR) |
| Output Type | Fixed |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD (5 Leads), Flat Leads |
| Number of Outputs | 1 |
| Base Product Number | AN1201 |
| Output Configuration | Negative |
| Frequency - Switching | 125kHz |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Synchronous Rectifier | No |
| Voltage - Input (Max) | 3V |
| Voltage - Input (Min) | 2V |
| Supplier Device Package | SMINI-5DA |
| Voltage - Output (Min/Fixed) | -Vin |
