Step1: Product

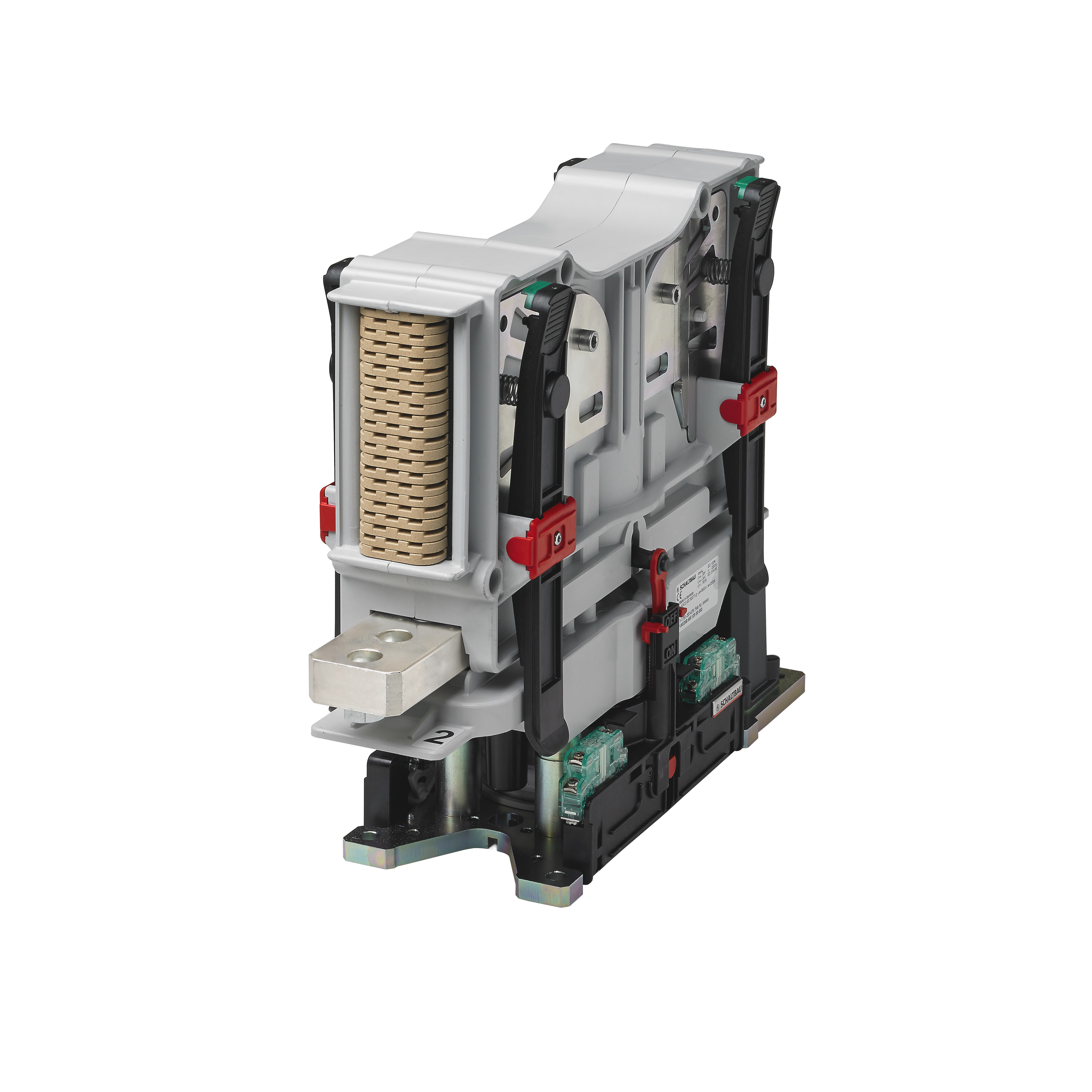

Schaltbau 1-1761-353299
Image shown is a representation only
Manufacturer
Manufacturer No
1-1761-353299
Packaging
Bulk
Description
CP1115-20-B-AN-120-00-000 SCHTZ
Detailed Description
Contactor 2000 A 16.8 ~ 30VDC Coil Panel Mount
DataSheet
Series
CP1115
Features
Auxiliary Contacts, Economizer
Packaging
Bulk
Coil Power
10W
Part Status
Active
Coil Current
420 mA
Coil Voltage
16.8 ~ 30VDC
Manufacturer
Schaltbau
Operate Time
160 ms
Release Time
40 ms
Mounting Type
Panel Mount
Contact Material
Silver Tin Oxide (AgSnO)
Switching Voltage
1.8kVDC - Nom
Termination Style
Busbar
Must Operate Voltage
16.8 VDC
Must Release Voltage
14.5 VDC
Operating Temperature
-40°C ~ 70°C
Contact Rating (Current)
2000 A
| Attribute | Value |
|---|---|
| Series | CP1115 |
| Features | Auxiliary Contacts, Economizer |
| Packaging | Bulk |
| Coil Power | 10W |
| Part Status | Active |
| Coil Current | 420 mA |
| Coil Voltage | 16.8 ~ 30VDC |
| Manufacturer | Schaltbau |
| Operate Time | 160 ms |
| Release Time | 40 ms |
| Mounting Type | Panel Mount |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Switching Voltage | 1.8kVDC - Nom |
| Termination Style | Busbar |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 14.5 VDC |
| Operating Temperature | -40°C ~ 70°C |
| Contact Rating (Current) | 2000 A |
