Step1: Product

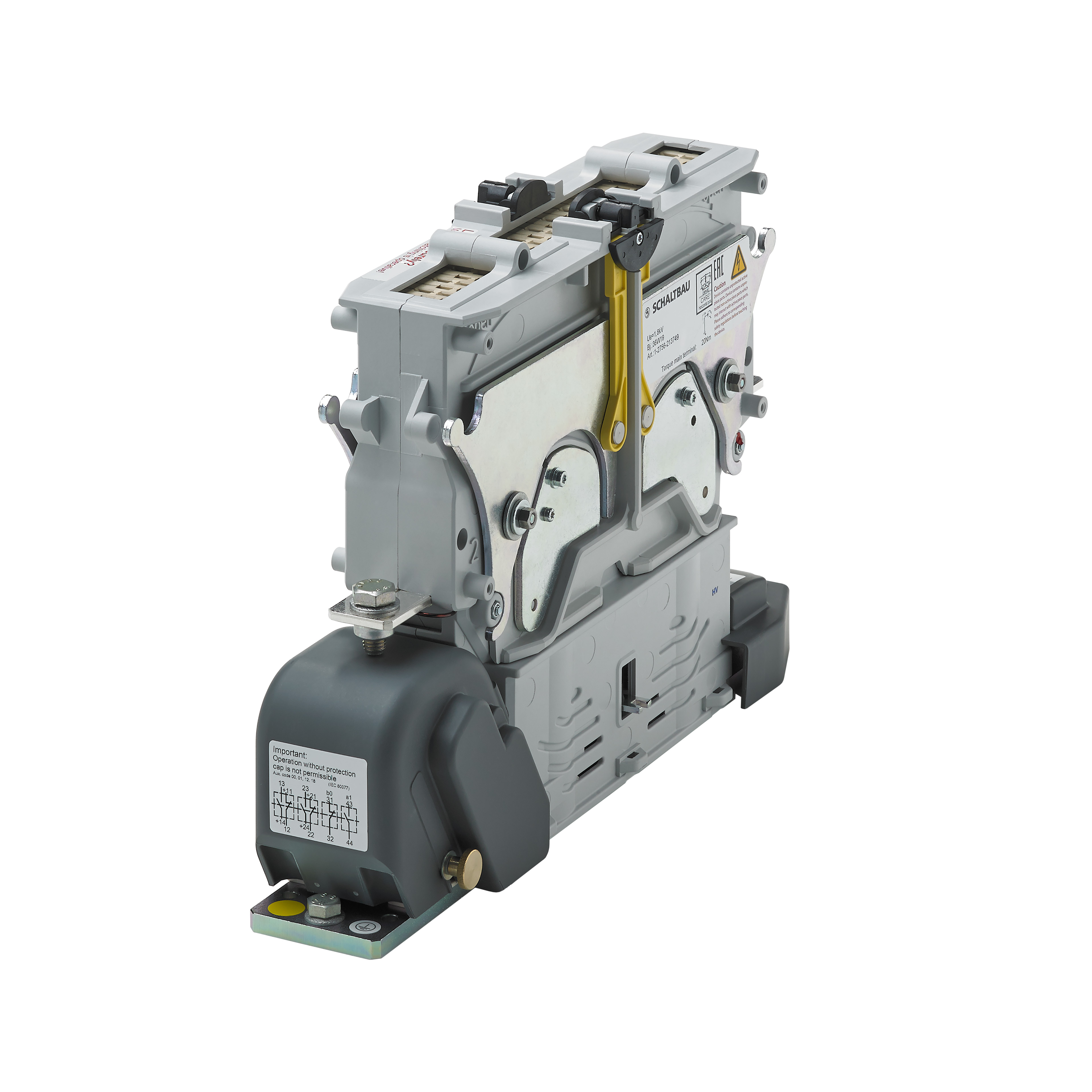

Schaltbau 1-1756-213567
Image shown is a representation only
Manufacturer
Manufacturer No
1-1756-213567
Packaging
Bulk
Description
CT1115/04 H 24ET-00 SCHTZ
Detailed Description
Contactor 400 A 16.8 ~ 30VDC Coil Panel Mount
DataSheet
Series
CT1115
Features
Auxiliary Contacts, Suppressor
Packaging
Bulk
Coil Power
40W
Part Status
Active
Coil Current
1.66 A
Coil Voltage
16.8 ~ 30VDC
Manufacturer
Schaltbau
Operate Time
250 ms
Release Time
60 ms
Mounting Type
Panel Mount
Coil Resistance
16.4Ohms
Contact Material
Silver Tin Oxide (AgSnO)
Switching Voltage
1.8kVDC - Nom
Termination Style
Busbar
Must Operate Voltage
12.7 VDC
Must Release Voltage
1.92 VDC
Operating Temperature
-40°C ~ 70°C
Contact Rating (Current)
400 A
| Attribute | Value |
|---|---|
| Series | CT1115 |
| Features | Auxiliary Contacts, Suppressor |
| Packaging | Bulk |
| Coil Power | 40W |
| Part Status | Active |
| Coil Current | 1.66 A |
| Coil Voltage | 16.8 ~ 30VDC |
| Manufacturer | Schaltbau |
| Operate Time | 250 ms |
| Release Time | 60 ms |
| Mounting Type | Panel Mount |
| Coil Resistance | 16.4Ohms |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Switching Voltage | 1.8kVDC - Nom |
| Termination Style | Busbar |
| Must Operate Voltage | 12.7 VDC |
| Must Release Voltage | 1.92 VDC |
| Operating Temperature | -40°C ~ 70°C |
| Contact Rating (Current) | 400 A |
