Step1: Product

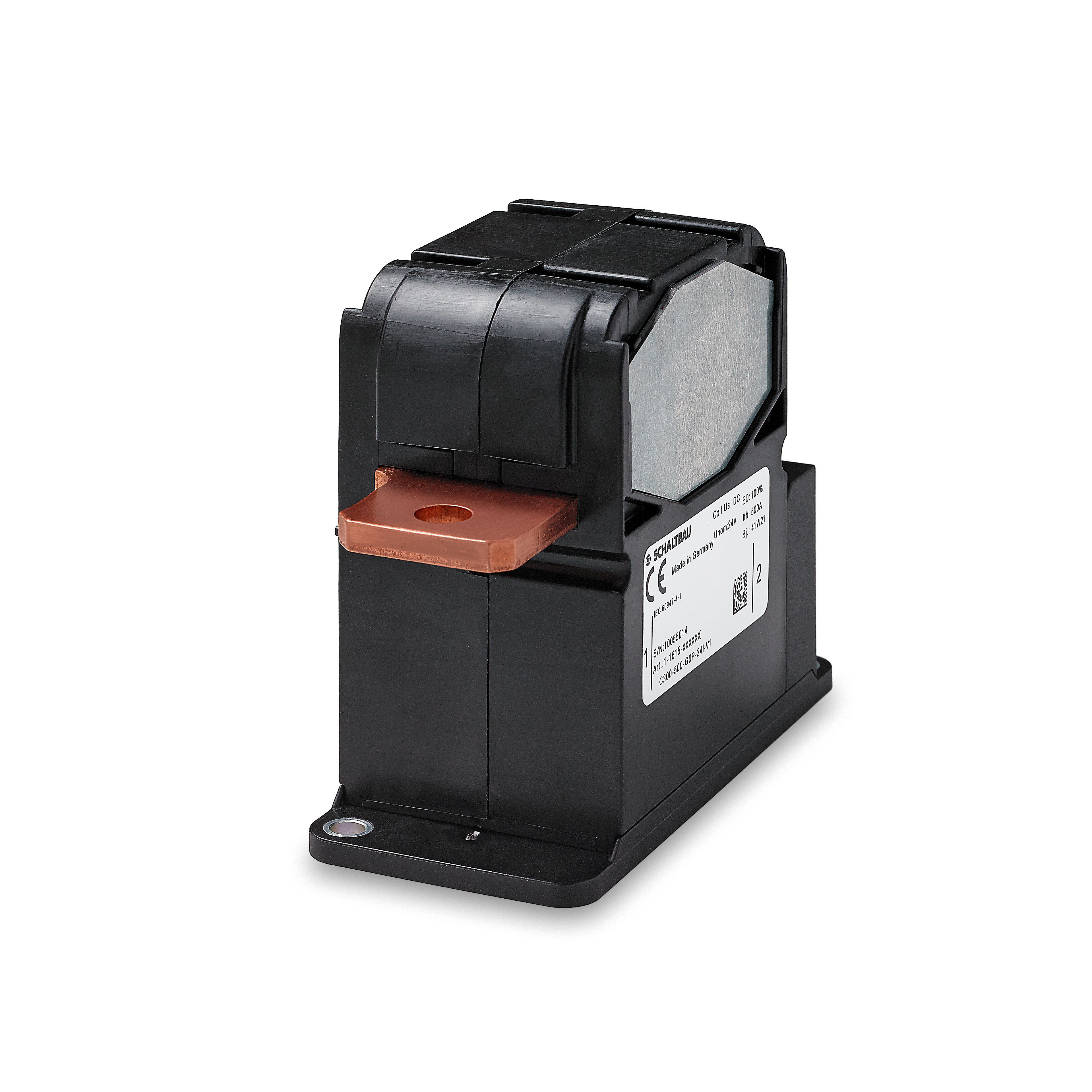

Schaltbau 1-1615-355023
Image shown is a representation only
Manufacturer
Manufacturer No
1-1615-355023
Packaging
Bulk
Description
C300-500-G0P-24I-V1
Detailed Description
Contactor SPST-NO (DM) (1 Form X) 500 A 12 ~ 24VDC Coil Panel Mount
DataSheet
Series
C300
Features
Auxiliary Contacts, Economizer
Packaging
Bulk
Part Status
Active
Coil Voltage
12 ~ 24VDC
Contact Form
SPST-NO (DM) (1 Form X)
Manufacturer
Schaltbau
Operate Time
33 ms
Release Time
5 ms
Mounting Type
Panel Mount
Contact Material
Silver Tin Oxide (AgSnO)
Switching Voltage
1000VDC - Nom
Termination Style
Screw Terminal, Wire Leads
Must Operate Voltage
16.5 VDC
Must Release Voltage
13.6 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
500 A
| Attribute | Value |
|---|---|
| Series | C300 |
| Features | Auxiliary Contacts, Economizer |
| Packaging | Bulk |
| Part Status | Active |
| Coil Voltage | 12 ~ 24VDC |
| Contact Form | SPST-NO (DM) (1 Form X) |
| Manufacturer | Schaltbau |
| Operate Time | 33 ms |
| Release Time | 5 ms |
| Mounting Type | Panel Mount |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Switching Voltage | 1000VDC - Nom |
| Termination Style | Screw Terminal, Wire Leads |
| Must Operate Voltage | 16.5 VDC |
| Must Release Voltage | 13.6 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 500 A |
