Schaltbau 1-1614-356014

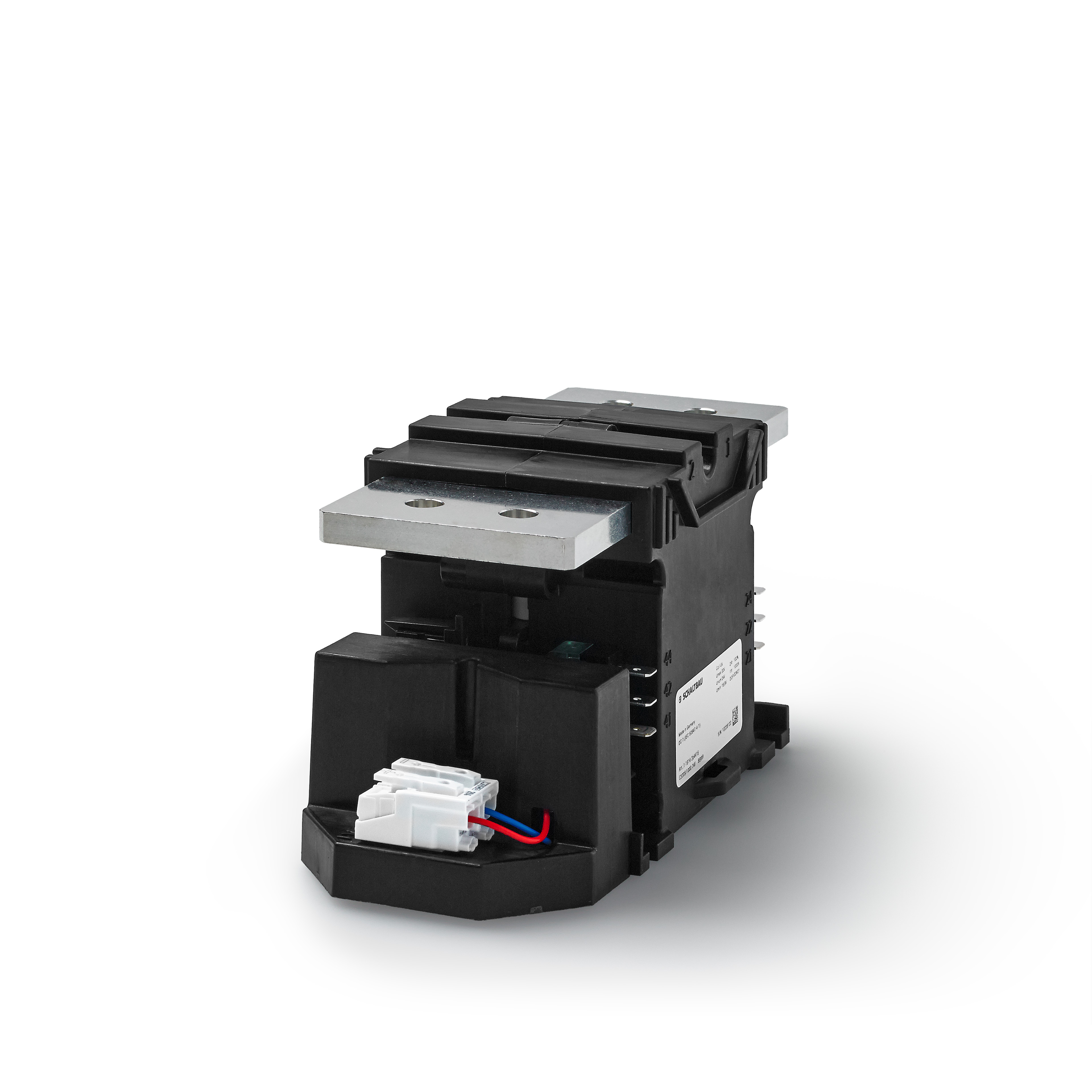

Schaltbau 1-1614-356014 electronic component

Image shown is a representation only

Manufacturer
Schaltbau
Manufacturer No
1-1614-356014
Packaging
Bulk
Description
C320S/100 1 Pole bi-direct. DC
Detailed Description
Contactor SPST-NO (DM) (1 Form X) 1000 A 12 ~ 24VDC Coil Panel Mount
Datasheet
ISO 13485 certification
ISO 14001 certification
Five-Star Service certification
UKAS management certification
IAF recognition arrangement certification
Series
C320
Features
Auxiliary Contacts, Economizer
Packaging
Bulk
Coil Voltage
12 ~ 24VDC
Contact Form
SPST-NO (DM) (1 Form X)
Manufacturer
Schaltbau
Operate Time
60 ms
Release Time
10 ms
Mounting Type
Panel Mount
Contact Material
Silver Tin Oxide (AgSnO)
Switching Voltage
60VDC - Max
Termination Style
Quick Connect
Must Operate Voltage
16.5 VDC
Must Release Voltage
13.6 VDC
Operating Temperature
-40°C ~ 60°C
Contact Rating (Current)
1000 A
AttributeValue
SeriesC320
FeaturesAuxiliary Contacts, Economizer
PackagingBulk
Coil Voltage12 ~ 24VDC
Contact FormSPST-NO (DM) (1 Form X)
ManufacturerSchaltbau
Operate Time60 ms
Release Time10 ms
Mounting TypePanel Mount
Contact MaterialSilver Tin Oxide (AgSnO)
Switching Voltage60VDC - Max
Termination StyleQuick Connect
Must Operate Voltage16.5 VDC
Must Release Voltage13.6 VDC
Operating Temperature-40°C ~ 60°C
Contact Rating (Current)1000 A
