Step1: Product

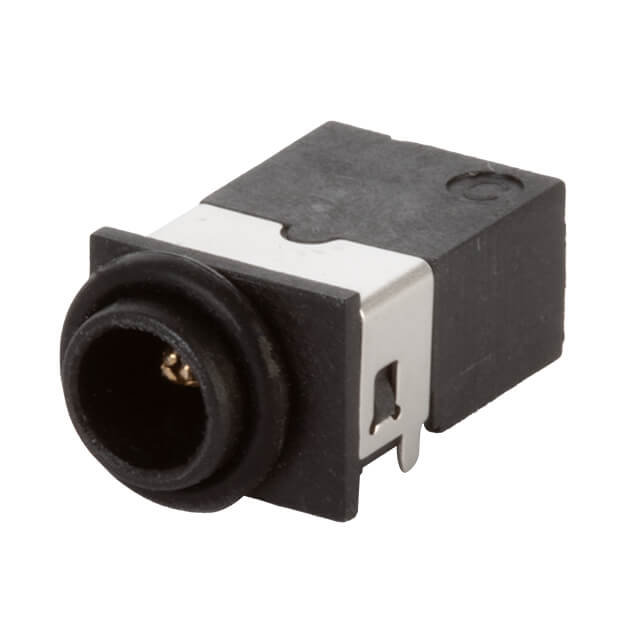

Same Sky (Formerly CUI Devices) PJ-115DH-TR-X7
Image shown is a representation only
Manufacturer
Manufacturer No
PJ-115DH-TR-X7
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN PWR JACK 1.35 X 3.50MM SLDR
Detailed Description
Power Barrel Connector Jack 1.35mm ID (0.053"), 3.50mm OD (0.138") Through Hole, Right Angle
Datasheet
Gender
Male
Features
Board Guide
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shielding
Shielded
Termination
Solder
Manufacturer
Same Sky (Formerly CUI Devices)
Mounting Type
Through Hole, Right Angle
Connector Type
Jack
Actual Diameter
0.051" (1.30mm ID), 0.150" (3.80mm OD)
Voltage - Rated
30VDC
Contact Material
Brass, Copper Alloy
Housing Material
Polyamide (PA10T), Nylon 10T
Insulation Color
Black
Ingress Protection
IPX7 - Waterproof
Internal Switch(s)
Single Switch
Mating Length/Depth
0.335" (8.50mm)
Current Rating (Amps)
5 A
Operating Temperature
-20°C ~ 70°C
Contact Material - Plating
Gold
Material Flammability Rating
UL94 V-0
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
1.35mm ID (0.053"), 3.50mm OD (0.138")
| Attribute | Value |
|---|---|
| Gender | Male |
| Features | Board Guide |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Shielded |
| Termination | Solder |
| Manufacturer | Same Sky (Formerly CUI Devices) |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Jack |
| Actual Diameter | 0.051" (1.30mm ID), 0.150" (3.80mm OD) |
| Voltage - Rated | 30VDC |
| Contact Material | Brass, Copper Alloy |
| Housing Material | Polyamide (PA10T), Nylon 10T |
| Insulation Color | Black |
| Ingress Protection | IPX7 - Waterproof |
| Internal Switch(s) | Single Switch |
| Mating Length/Depth | 0.335" (8.50mm) |
| Current Rating (Amps) | 5 A |
| Operating Temperature | -20°C ~ 70°C |
| Contact Material - Plating | Gold |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 1.35mm ID (0.053"), 3.50mm OD (0.138") |
