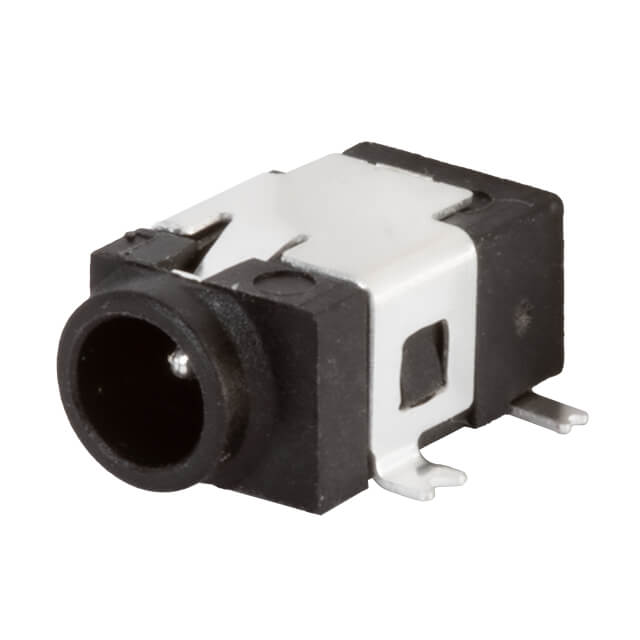

Same Sky (Formerly CUI Devices) PJ-111C-SMT-TR
Image shown is a representation only
Manufacturer
Manufacturer No
PJ-111C-SMT-TR
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
1.0 X 3.6 MM, 1.0 A, HORIZONTAL,
Detailed Description
Power Barrel Connector Jack 1.00mm ID (0.039"), 3.50mm OD (0.138") Surface Mount, Right Angle
DataSheet
Gender
Male
Features
Board Guide
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Unshielded
Part Status
Active
Termination
Solder
Manufacturer
Same Sky (Formerly CUI Devices)
Mounting Type
Surface Mount, Right Angle
Connector Type
Jack
Actual Diameter
0.039" (1.00mm ID), 0.142" (3.60mm OD)
Voltage - Rated
30VDC
Contact Material
Copper Alloy
Housing Material
Polyamide (PA10T), Nylon 10T
Insulation Color
Black
Internal Switch(s)
Does Not Contain Switch
Mating Length/Depth
0.295" (7.50mm)
Current Rating (Amps)
1 A
Operating Temperature
-20°C ~ 70°C
Contact Material - Plating
Silver
Material Flammability Rating
UL94 V-0
Number of Positions/Contacts
3 Conductors, 3 Contacts
Industry Recognized Mating Diameter
1.00mm ID (0.039"), 3.50mm OD (0.138")
| Attribute | Value |
|---|---|
| Gender | Male |
| Features | Board Guide |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Unshielded |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Same Sky (Formerly CUI Devices) |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Jack |
| Actual Diameter | 0.039" (1.00mm ID), 0.142" (3.60mm OD) |
| Voltage - Rated | 30VDC |
| Contact Material | Copper Alloy |
| Housing Material | Polyamide (PA10T), Nylon 10T |
| Insulation Color | Black |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 0.295" (7.50mm) |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -20°C ~ 70°C |
| Contact Material - Plating | Silver |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions/Contacts | 3 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 1.00mm ID (0.039"), 3.50mm OD (0.138") |
