Step1: Product

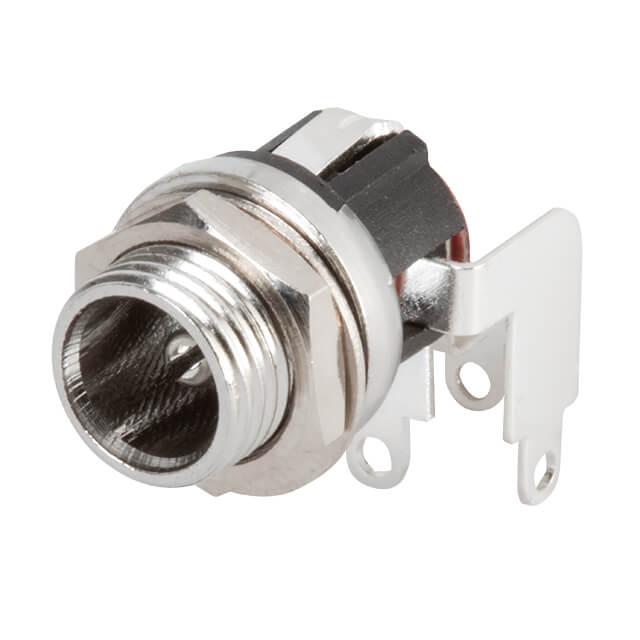

Same Sky (Formerly CUI Devices) PJ-112BH
Image shown is a representation only
Manufacturer
Manufacturer No
PJ-112BH
Packaging
Box
Description
2.5 X 5.7 MM, 3.0 A, HORIZONTAL,
Detailed Description
Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Panel Mount, Through Hole, Right Angle
DataSheet
Gender
Male
Features
Mounting Hardware
Packaging
Box
Shielding
Unshielded
Part Status
Active
Termination
Solder Eyelet(s)
Thread Size
M8x0.75
Manufacturer
Same Sky (Formerly CUI Devices)
Mounting Type
Panel Mount, Through Hole, Right Angle
Connector Type
Jack
Actual Diameter
0.098" (2.50mm ID), 0.224" (5.70mm OD)
Voltage - Rated
12VDC
Contact Material
Brass, Phosphor Bronze
Housing Material
Polybutylene Terephthalate (PBT)
Insulation Color
Black
Mounting Feature
Bulkhead - Front Side Nut
Internal Switch(s)
Single Switch
Mating Length/Depth
0.362" (9.20mm)
Current Rating (Amps)
5 A
Operating Temperature
-20°C ~ 70°C
Contact Material - Plating
Silver
Material Flammability Rating
UL94 V-0
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
2.50mm ID (0.098"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Male |
| Features | Mounting Hardware |
| Packaging | Box |
| Shielding | Unshielded |
| Part Status | Active |
| Termination | Solder Eyelet(s) |
| Thread Size | M8x0.75 |
| Manufacturer | Same Sky (Formerly CUI Devices) |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Jack |
| Actual Diameter | 0.098" (2.50mm ID), 0.224" (5.70mm OD) |
| Voltage - Rated | 12VDC |
| Contact Material | Brass, Phosphor Bronze |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Insulation Color | Black |
| Mounting Feature | Bulkhead - Front Side Nut |
| Internal Switch(s) | Single Switch |
| Mating Length/Depth | 0.362" (9.20mm) |
| Current Rating (Amps) | 5 A |
| Operating Temperature | -20°C ~ 70°C |
| Contact Material - Plating | Silver |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
