Step1: Product
Same Sky (Formerly CUI Devices) PJ-110AH

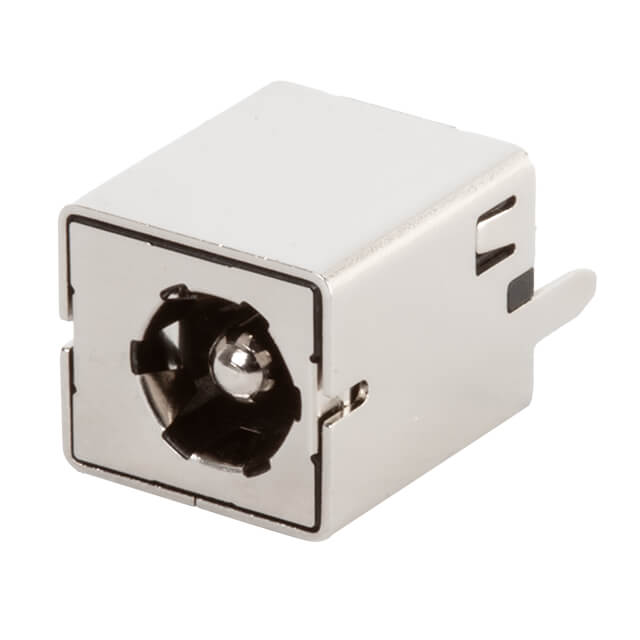

Image shown is a representation only
Manufacturer
Manufacturer No
PJ-110AH
Packaging
Tray
Description
2.0 X 6.0 MM, 5.0 A, VERTICAL, T
Detailed Description
Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Through Hole
DataSheet
Gender
Male
Features
Board Guide
Packaging
Tray
Shielding
Shielded
Part Status
Active
Termination
Solder
Manufacturer
Same Sky (Formerly CUI Devices)
Mounting Type
Through Hole
Connector Type
Jack
Actual Diameter
0.079" (2.00mm ID), 0.236" (6.00mm OD)
Voltage - Rated
24VDC
Contact Material
Brass, Copper Alloy
Housing Material
Polyamide (PA10T), Nylon 10T
Insulation Color
Black
Internal Switch(s)
Single Switch
Mating Length/Depth
0.323" (8.20mm)
Current Rating (Amps)
5 A
Operating Temperature
-20°C ~ 70°C
Contact Material - Plating
Nickel, Tin
Material Flammability Rating
UL94 V-0
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
2.00mm ID (0.079"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Male |
| Features | Board Guide |
| Packaging | Tray |
| Shielding | Shielded |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Same Sky (Formerly CUI Devices) |
| Mounting Type | Through Hole |
| Connector Type | Jack |
| Actual Diameter | 0.079" (2.00mm ID), 0.236" (6.00mm OD) |
| Voltage - Rated | 24VDC |
| Contact Material | Brass, Copper Alloy |
| Housing Material | Polyamide (PA10T), Nylon 10T |
| Insulation Color | Black |
| Internal Switch(s) | Single Switch |
| Mating Length/Depth | 0.323" (8.20mm) |
| Current Rating (Amps) | 5 A |
| Operating Temperature | -20°C ~ 70°C |
| Contact Material - Plating | Nickel, Tin |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 2.00mm ID (0.079"), 5.50mm OD (0.217") |
