Renesas Electronics Corporation TP65H480G4JSG-TR

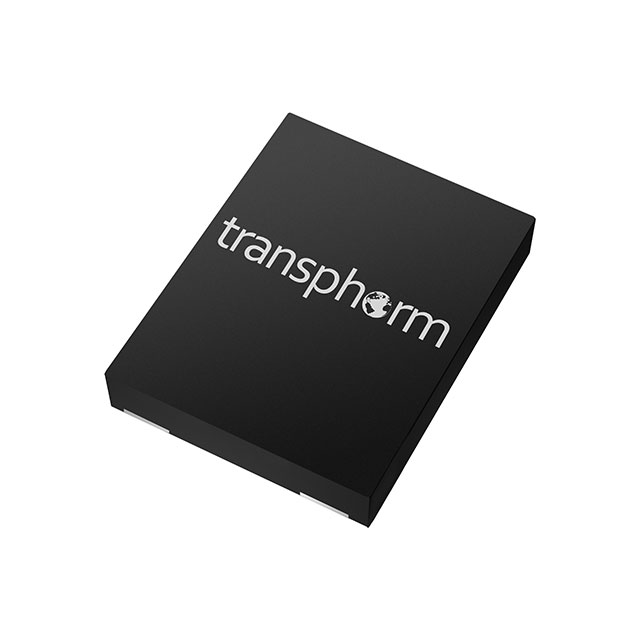

Image shown is a representation only
Manufacturer
Manufacturer No
TP65H480G4JSG-TR
Quantity
15
Availability
In Stock
Package
3-PowerTDFN
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
GANFET N-CH 650V 3.6A 3PQFN
Detailed Description
N-Channel 650 V 3.6A (Tc) 13.2W (Tc) Surface Mount 3-PQFN (5x6)
DataSheet
Mfr
Renesas Electronics Corporation
FET Type
N-Channel
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Vgs (Max)
±18V
Technology
GaNFET (Cascode Gallium Nitride FET)
Part Status
Active
Mounting Type
Surface Mount
Package / Case
3-PowerTDFN
Vgs(th) (Max) @ Id
2.8V @ 500µA
Base Product Number
TP65H480
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
560mOhm @ 3.4A, 8V
Power Dissipation (Max)
13.2W (Tc)
Supplier Device Package
3-PQFN (5x6)
Gate Charge (Qg) (Max) @ Vgs
9 nC @ 8 V
Drain to Source Voltage (Vdss)
650 V
Input Capacitance (Ciss) (Max) @ Vds
760 pF @ 400 V
Drive Voltage (Max Rds On, Min Rds On)
8V
Current - Continuous Drain (Id) @ 25°C
3.6A (Tc)
| Attribute | Value |
|---|---|
| Mfr | Renesas Electronics Corporation |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Vgs (Max) | ±18V |
| Technology | GaNFET (Cascode Gallium Nitride FET) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 3-PowerTDFN |
| Vgs(th) (Max) @ Id | 2.8V @ 500µA |
| Base Product Number | TP65H480 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 560mOhm @ 3.4A, 8V |
| Power Dissipation (Max) | 13.2W (Tc) |
| Supplier Device Package | 3-PQFN (5x6) |
| Gate Charge (Qg) (Max) @ Vgs | 9 nC @ 8 V |
| Drain to Source Voltage (Vdss) | 650 V |
| Input Capacitance (Ciss) (Max) @ Vds | 760 pF @ 400 V |
| Drive Voltage (Max Rds On, Min Rds On) | 8V |
| Current - Continuous Drain (Id) @ 25°C | 3.6A (Tc) |
