Renesas Electronics Corporation TP65H030G4PWS

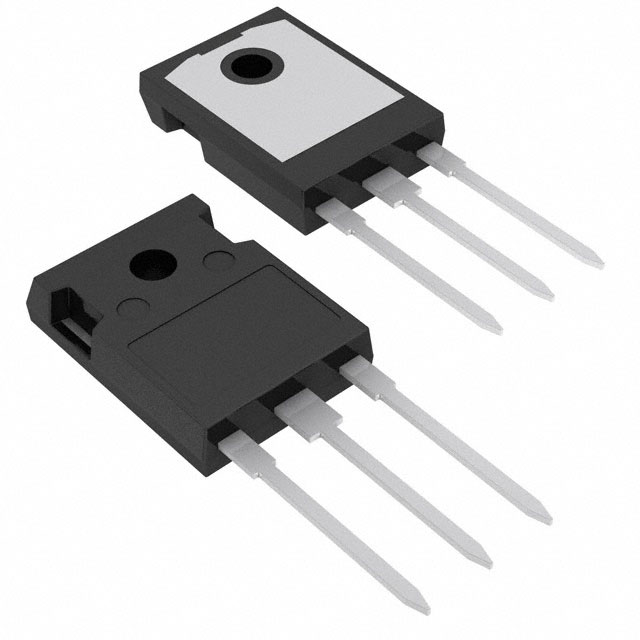

Image shown is a representation only
Manufacturer
Manufacturer No
TP65H030G4PWS
Quantity
20
Availability
In Stock
Package
TO-247-3
Packaging
Tube
Description
GANFET N-CH 650V 55.7A TO247-3
Detailed Description
N-Channel 650 V 55.7A (Tc) 192W (Tc) Through Hole TO-247-3
DataSheet
Mfr
Renesas Electronics Corporation
Series
SuperGaN®
FET Type
N-Channel
Packaging
Tube
Vgs (Max)
±20V
Technology
GaNFET (Cascode Gallium Nitride FET)
Part Status
Active
Mounting Type
Through Hole
Package / Case
TO-247-3
Vgs(th) (Max) @ Id
4.8V @ 1mA
Base Product Number
TP65H030
Operating Temperature
-40°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
41mOhm @ 30A, 12V
Power Dissipation (Max)
192W (Tc)
Supplier Device Package
TO-247-3
Gate Charge (Qg) (Max) @ Vgs
24.5 nC @ 12 V
Drain to Source Voltage (Vdss)
650 V
Input Capacitance (Ciss) (Max) @ Vds
1500 pF @ 400 V
Drive Voltage (Max Rds On, Min Rds On)
12V
Current - Continuous Drain (Id) @ 25°C
55.7A (Tc)
| Attribute | Value |
|---|---|
| Mfr | Renesas Electronics Corporation |
| Series | SuperGaN® |
| FET Type | N-Channel |
| Packaging | Tube |
| Vgs (Max) | ±20V |
| Technology | GaNFET (Cascode Gallium Nitride FET) |
| Part Status | Active |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Vgs(th) (Max) @ Id | 4.8V @ 1mA |
| Base Product Number | TP65H030 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 41mOhm @ 30A, 12V |
| Power Dissipation (Max) | 192W (Tc) |
| Supplier Device Package | TO-247-3 |
| Gate Charge (Qg) (Max) @ Vgs | 24.5 nC @ 12 V |
| Drain to Source Voltage (Vdss) | 650 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1500 pF @ 400 V |
| Drive Voltage (Max Rds On, Min Rds On) | 12V |
| Current - Continuous Drain (Id) @ 25°C | 55.7A (Tc) |
