Step1: Product
Renesas Electronics Corporation 2SK2225-E

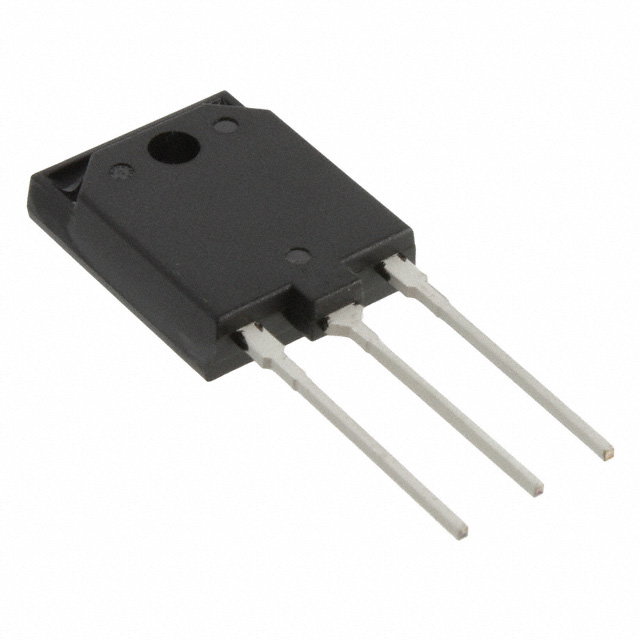

Image shown is a representation only
Manufacturer
Manufacturer No
2SK2225-E
Quantity
266
Availability
In Stock
Package
TO-3PFM, SC-93-3
Packaging
Tube
Description
MOSFET N-CH 1500V 2A TO3PFM
Detailed Description
N-Channel 1500 V 2A (Ta) 50W (Tc) Through Hole TO-3PFM
Datasheet
Mfr
Renesas Electronics Corporation
FET Type
N-Channel
Packaging
Tube
Vgs (Max)
±20V
Technology
MOSFET (Metal Oxide)
Mounting Type
Through Hole
Package / Case
TO-3PFM, SC-93-3
Base Product Number
2SK2225
Operating Temperature
150°C (TJ)
Rds On (Max) @ Id, Vgs
12Ohm @ 1A, 15V
Power Dissipation (Max)
50W (Tc)
Supplier Device Package
TO-3PFM
Drain to Source Voltage (Vdss)
1500 V
Input Capacitance (Ciss) (Max) @ Vds
984.7 pF @ 30 V
Drive Voltage (Max Rds On, Min Rds On)
15V
Current - Continuous Drain (Id) @ 25°C
2A (Ta)
| Attribute | Value |
|---|---|
| Mfr | Renesas Electronics Corporation |
| FET Type | N-Channel |
| Packaging | Tube |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Mounting Type | Through Hole |
| Package / Case | TO-3PFM, SC-93-3 |
| Base Product Number | 2SK2225 |
| Operating Temperature | 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 12Ohm @ 1A, 15V |
| Power Dissipation (Max) | 50W (Tc) |
| Supplier Device Package | TO-3PFM |
| Drain to Source Voltage (Vdss) | 1500 V |
| Input Capacitance (Ciss) (Max) @ Vds | 984.7 pF @ 30 V |
| Drive Voltage (Max Rds On, Min Rds On) | 15V |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta) |
