Step1: Product

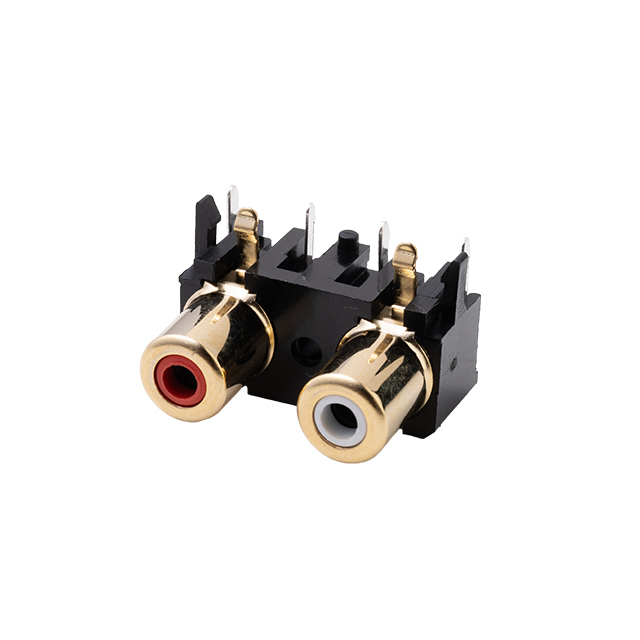

RDI, Inc. RH1039M040G-NL
Image shown is a representation only
Manufacturer
Manufacturer No
RH1039M040G-NL
Packaging
Tray
Description
RCA JACK
Detailed Description
3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack, Dual Mono Connector Solder
Datasheet
Mfr
RDI, Inc.
Gender
Female
Features
Board Guide
Packaging
Tray
Shielding
Unshielded
Body Color
Gold
Termination
Solder
Signal Lines
Mono
Body Material
Brass
Mounting Type
Through Hole, Right Angle
Connector Type
Phono (RCA) Jack, Dual
Actual Diameter
0.126" (3.20mm)
Voltage - Rated
12VDC
Housing Material
Polybutylene Terephthalate (PBT)
Insulation Color
Red, White
Internal Switch(s)
Single Switch
Mating Length/Depth
0.551" (14.00mm)
Operating Temperature
-40°C ~ 70°C
Number of Positions/Contacts
2 Sets of 2 Conductors, 6 Contacts
Industry Recognized Mating Diameter
3.20mm ID, 9.00mm OD (RCA)
| Attribute | Value |
|---|---|
| Mfr | RDI, Inc. |
| Gender | Female |
| Features | Board Guide |
| Packaging | Tray |
| Shielding | Unshielded |
| Body Color | Gold |
| Termination | Solder |
| Signal Lines | Mono |
| Body Material | Brass |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Phono (RCA) Jack, Dual |
| Actual Diameter | 0.126" (3.20mm) |
| Voltage - Rated | 12VDC |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Insulation Color | Red, White |
| Internal Switch(s) | Single Switch |
| Mating Length/Depth | 0.551" (14.00mm) |
| Operating Temperature | -40°C ~ 70°C |
| Number of Positions/Contacts | 2 Sets of 2 Conductors, 6 Contacts |
| Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) |
