Step1: Product
RDI, Inc. RSJ3550H01030NL

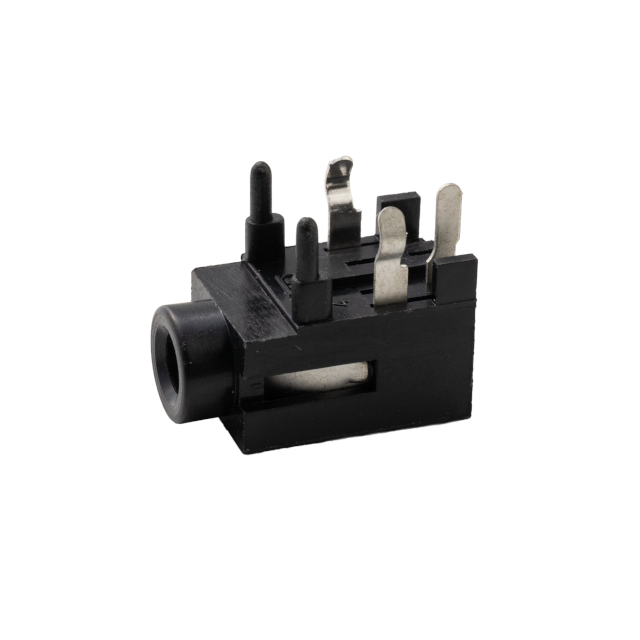

Image shown is a representation only
Manufacturer
Manufacturer No
RSJ3550H01030NL
Packaging
Bag
Description
3.5MM AUDIO JACK
Detailed Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
DataSheet
Mfr
RDI, Inc.
Gender
Female
Packaging
Bag
Shielding
Unshielded
Part Status
Active
Termination
Solder
Signal Lines
Stereo (3 Conductor, TRS)
Mounting Type
Through Hole, Right Angle
Connector Type
Phone Jack
Actual Diameter
0.142" (3.60mm)
Voltage - Rated
12VDC
Housing Material
Thermoplastic
Insulation Color
Black
Internal Switch(s)
Does Not Contain Switch
Operating Temperature
-25°C ~ 70°C
Contact Material - Plating
Tin
Number of Positions/Contacts
3 Conductors, 3 Contacts
Industry Recognized Mating Diameter
3.50mm (0.141", 1/8", Mini Plug) - Headphone
| Attribute | Value |
|---|---|
| Mfr | RDI, Inc. |
| Gender | Female |
| Packaging | Bag |
| Shielding | Unshielded |
| Part Status | Active |
| Termination | Solder |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Phone Jack |
| Actual Diameter | 0.142" (3.60mm) |
| Voltage - Rated | 12VDC |
| Housing Material | Thermoplastic |
| Insulation Color | Black |
| Internal Switch(s) | Does Not Contain Switch |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material - Plating | Tin |
| Number of Positions/Contacts | 3 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
