Step1: Product

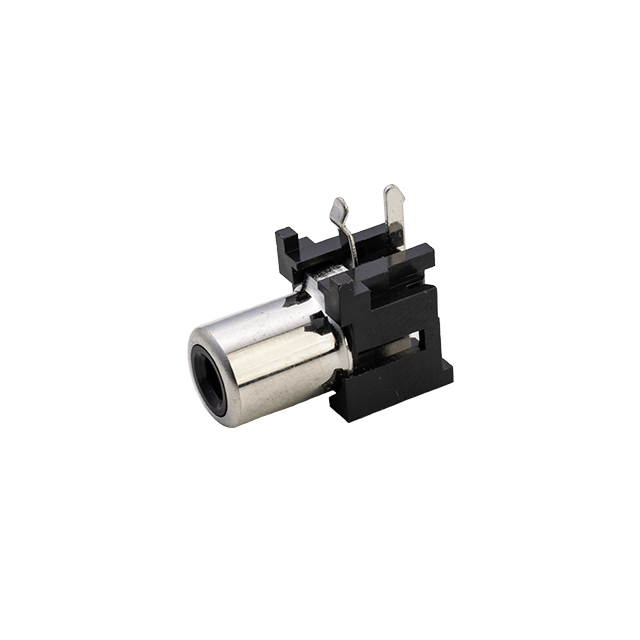

RDI, Inc. RH-1072-01-NL
Image shown is a representation only
Manufacturer
Manufacturer No
RH-1072-01-NL
Packaging
Bag
Description
RCA JACK
Detailed Description
3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Kinked Pin, Solder
DataSheet
Mfr
RDI, Inc.
Gender
Female
Features
Board Guide
Packaging
Bag
Shielding
Unshielded
Part Status
Active
Termination
Kinked Pin, Solder
Signal Lines
Mono
Mounting Type
Through Hole, Right Angle
Connector Type
Phono (RCA) Jack
Actual Diameter
0.126" (3.20mm)
Voltage - Rated
12V
Housing Material
Thermoplastic
Insulation Color
Black
Internal Switch(s)
Does Not Contain Switch
Mating Length/Depth
0.551" (14.00mm)
Number of Positions/Contacts
2 Conductors, 2 Contacts
Industry Recognized Mating Diameter
3.20mm ID, 9.00mm OD (RCA)
| Attribute | Value |
|---|---|
| Mfr | RDI, Inc. |
| Gender | Female |
| Features | Board Guide |
| Packaging | Bag |
| Shielding | Unshielded |
| Part Status | Active |
| Termination | Kinked Pin, Solder |
| Signal Lines | Mono |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Phono (RCA) Jack |
| Actual Diameter | 0.126" (3.20mm) |
| Voltage - Rated | 12V |
| Housing Material | Thermoplastic |
| Insulation Color | Black |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 0.551" (14.00mm) |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) |
