Step1: Product

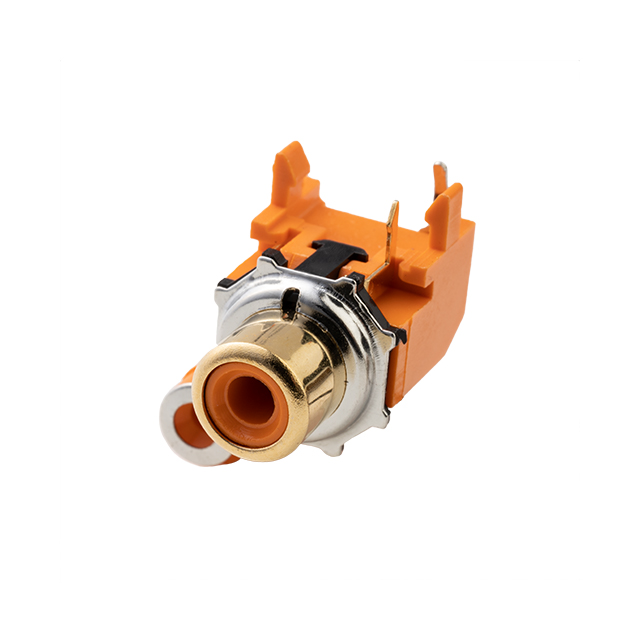

RDI, Inc. RH1041OR-MFPGNL
Image shown is a representation only
Manufacturer
Manufacturer No
RH1041OR-MFPGNL
Packaging
Bag
Description
RCA JACK
Detailed Description
2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone, 3.20mm ID, 9mm OD (RCA) Phono (RCA) Jack, Dual Mono Connector
DataSheet
Mfr
RDI, Inc.
Gender
Female
Packaging
Bag
Shielding
Shielded
Body Color
Gold
Part Status
Active
Signal Lines
Mono
Body Material
Brass
Mounting Type
Through Hole, Right Angle
Connector Type
Phono (RCA) Jack, Dual
Actual Diameter
0.098" (2.50mm), 0.126" (3.20mm)
Voltage - Rated
12VDC
Housing Material
Acrylonitrile Butadiene Styrene (ABS)
Insulation Color
Orange
Internal Switch(s)
Does Not Contain Switch
Mating Length/Depth
0.551" (14.00mm)
Operating Temperature
-40°C ~ 70°C
Contact Material - Plating
Gold
Number of Positions/Contacts
2 Conductors, 2 Contacts
Industry Recognized Mating Diameter
2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone, 3.20mm ID, 9mm OD (RCA)
| Attribute | Value |
|---|---|
| Mfr | RDI, Inc. |
| Gender | Female |
| Packaging | Bag |
| Shielding | Shielded |
| Body Color | Gold |
| Part Status | Active |
| Signal Lines | Mono |
| Body Material | Brass |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Phono (RCA) Jack, Dual |
| Actual Diameter | 0.098" (2.50mm), 0.126" (3.20mm) |
| Voltage - Rated | 12VDC |
| Housing Material | Acrylonitrile Butadiene Styrene (ABS) |
| Insulation Color | Orange |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 0.551" (14.00mm) |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material - Plating | Gold |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Industry Recognized Mating Diameter | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone, 3.20mm ID, 9mm OD (RCA) |
